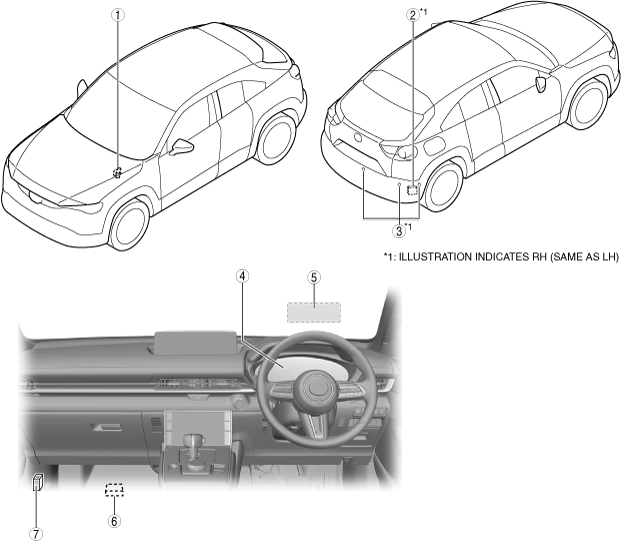

SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION] LOCATION INDEX

id152000100400

a30zzw00006436

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See ELECTRONICALLY CONTROLLED BRAKE UNIT RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR INSPECTION.)
3	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.) (See 360煆IEW MONITOR SYSTEM AIMING.)
4	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.)
5	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.)
6	360° view monitor control module (See 360煆IEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.) (See 360煆IEW MONITOR CONTROL MODULE INSPECTION.)
7	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.) (See VEHICLE CONTROL MODULE (VCM) INITIAL SETTING.)
