AM/FM ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4) Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(5) Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(6) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(8) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(9) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(10) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)

(11) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(12) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(13) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(14) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

(15) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(16) Female wedge (See CONVERTIBLE TOP DISASSEMBLY/ASSEMBLY.)

(17) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(18) Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(19) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(20) Fuse box No.1

(21) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

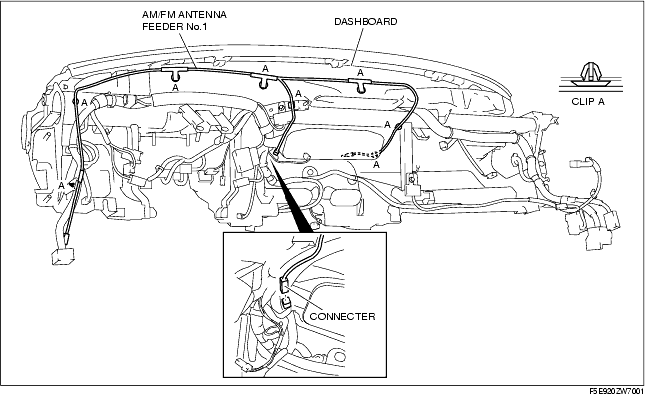

3. Remove clips A and B.

4. Disconnect the connector.

5. Remove AM/FM antenna feeder No.1.

6. Install in the reverse order of removal.

L.H.D.

R.H.D.
