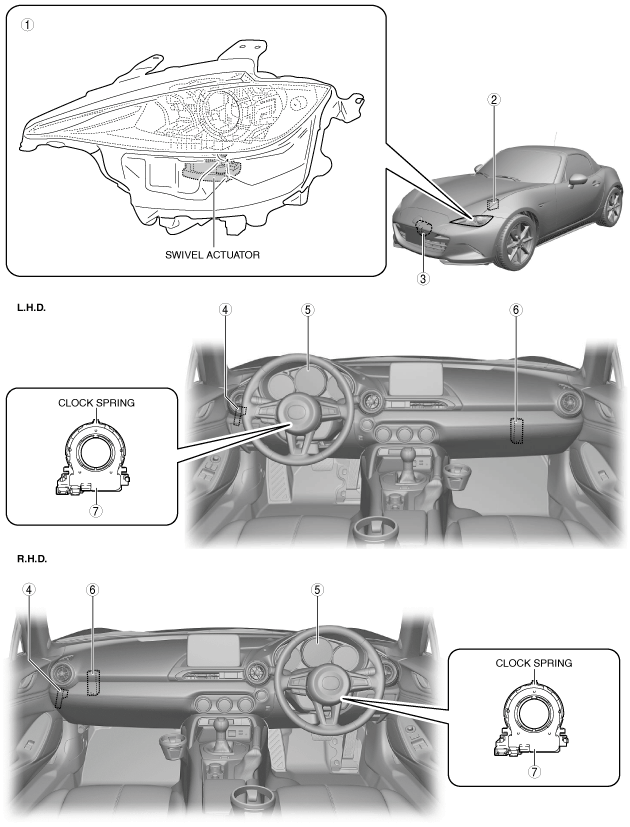

ADAPTIVE FRONT LIGHTING SYSTEM (AFS) LOCATION INDEX

id152000000700

amxzzw00003736

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.)
2	PCM (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See ELECTRIC POWER STEERING (EPS) CONTROL MODULE REMOVAL/INSTALLATION.) (See ELECTRIC POWER STEERING (EPS) SHORT CORD REMOVAL/INSTALLATION.)
4	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION).)
5	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.)
6	AFS control module (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
7	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
