INTERIOR TRIM LOCATION INDEX [4SD, 5HB]

id0917004542a1

L.H.D.

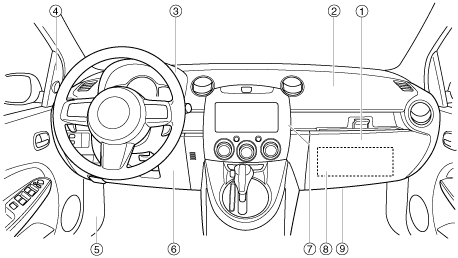

adejjw00002912

R.H.D.

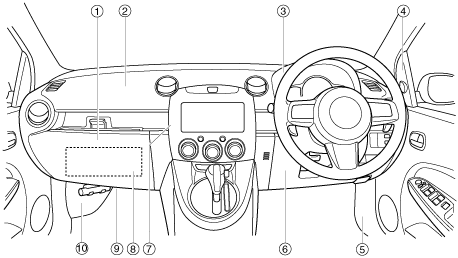

am2zzw00004461

1
Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
2
Dashboard
(See DASHBOARD REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
(See DASHBOARD REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].)
(See DASHBOARD DISASSEMBLY/ASSEMBLY.)
3
Meter hood
(See METER HOOD REMOVAL/INSTALLATION.)
4
Inner garnish
(See INNER GARNISH REMOVAL/INSTALLATION.)
5
Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
6
Lower panel
(See LOWER PANEL REMOVAL/INSTALLATION.)
7
Center panel (vehicles without audio unit)
(See CENTER PANEL REMOVAL/INSTALLATION.)
8
Glove compartment cover
(See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
9
Dashboard under cover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
10
Front side garnish (Vehicles with CVT)
(See FRONT SIDE GARNISH REMOVAL/INSTALLATION.)


4SD

L.H.D.

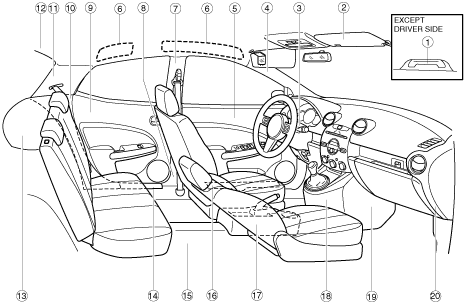

am2ccw00000068

R.H.D.

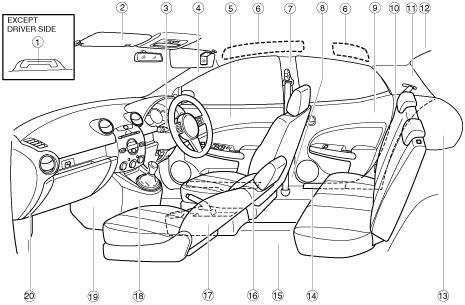

am2zzw00004913

1
Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION.)
2
Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION.)
3
Column cover
(See COLUMN COVER REMOVAL/INSTALLATION.)
4
A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION.)
5
Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
6
Shock-absorbing pad
(See SHOCK ABSORBING PAD REMOVAL/INSTALLATION.)
7
B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
8
B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
9
Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
10
Tire house trim
(See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)
11
C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION.)
12
Headliner
(See HEADLINER REMOVAL/INSTALLATION.)
13
Rear package trim
(See REAR PACKAGE TRIM REMOVAL/INSTALLATION [4SD].)
14
Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
15
Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION.)
16
Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
17
Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION.)
18
Front console component
(See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
(See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
19
Side wall
(See SIDE WALL REMOVAL/INSTALLATION.)
20
Side panel
(See SIDE PANEL REMOVAL/INSTALLATION.)


5HB

L.H.D.

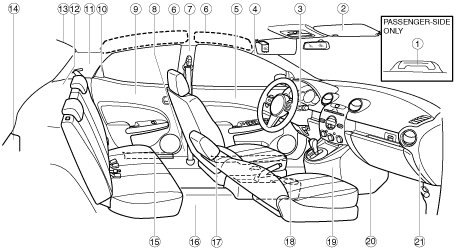

am2zzw00002219

R.H.D.

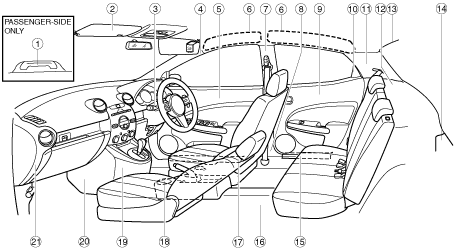

am2zzw00002220

1
Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION.)
2
Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION.)
3
Column cover
(See COLUMN COVER REMOVAL/INSTALLATION.)
4
A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION.)
5
Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
6
Shock absorbing pad
(See SHOCK ABSORBING PAD REMOVAL/INSTALLATION.)
7
B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
8
B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
9
Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
10
Sail inner garnish
(See SAIL INNER GARNISH REMOVAL/INSTALLATION.)
11
C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION.)
12
Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
13
Headliner
(See HEADLINER REMOVAL/INSTALLATION.)
14
Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION.)
15
Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
16
Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION.)
17
Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
18
Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION.)
19
Front console component
(See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
(See FRONT CONSOLE COMPONENT DISASSEMBLY/ASSEMBLY.)
20
Side wall
(See SIDE WALL REMOVAL/INSTALLATION.)
21
Side panel
(See SIDE PANEL REMOVAL/INSTALLATION.)


4SD

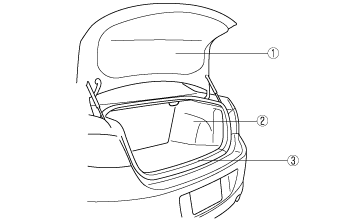

am2ccw00000142

1
Trunk lid trim
(See TRUNK LID TRIM REMOVAL/INSTALLATION [4SD].)
2
Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION.)
3
Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)


5HB

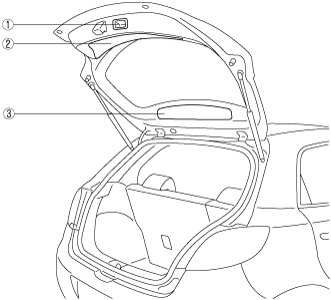

adejjw00003361

1
Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2
Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3
Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
