ENTERTAINMENT LOCATION INDEX

id092000800100

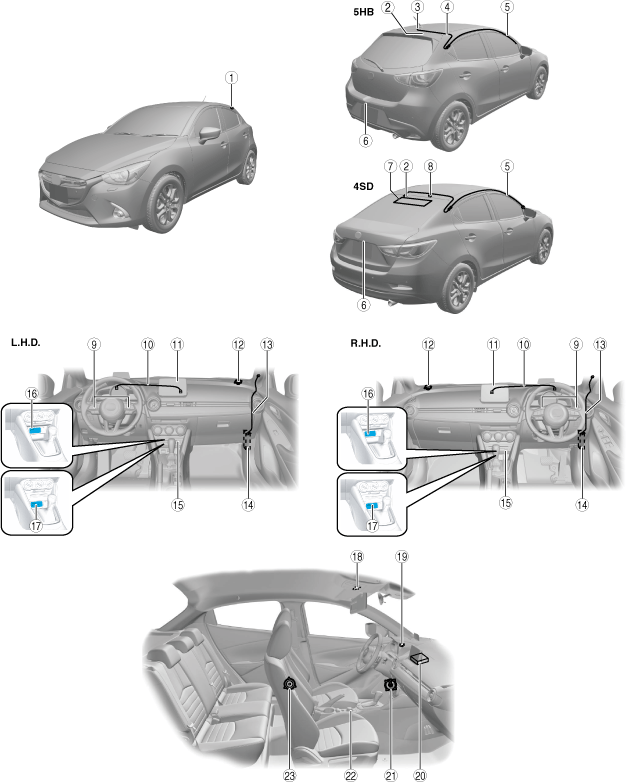

With Center Display

am2zzw00014243

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
2	DAB antenna amplifier (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
3	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
4	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
5	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL.) (See ANTENNA FEEDER NO.2 INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
6	Rear mount camera (with park assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)
7	Glass antenna (See GLASS ANTENNA INSPECTION.)
8	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
9	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
10	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
11	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
12	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
13	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
14	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)
15	CD player (with CD player) DVD/CD player (with DVD/CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
16	Auxiliary jack/USB port/SD card slot hub (without CD player or DVD/CD player) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
17	Auxiliary jack/USB port/SD card slot hub (with CD player or DVD/CD player) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
18	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
19	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
20	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)
21	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
22	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
23	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)

Without Center Display

am2zzw00014244

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
2	Glass antenna (See GLASS ANTENNA INSPECTION.)
3	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
4	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL.) (See ANTENNA FEEDER NO.2 INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
5	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
6	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
7	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
8	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
9	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
10	Auxiliary jack/USB port (without CD player) (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
11	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
12	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
13	Bluetooth® unit (with Bluetooth® unit) (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
14	CD player (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
15	Auxiliary jack/USB port (with CD player) (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
