INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200

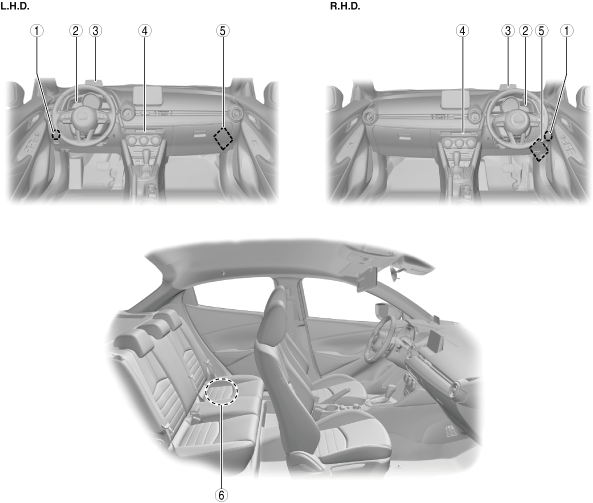

Interior

am2zzw00013414

1	Parking sensor buzzer (with parking sensor system) (See PARKING SENSOR BUZZER REMOVAL/INSTALLATION.) (See PARKING SENSOR BUZZER INSPECTION.)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER OPERATION RECORD.) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
3	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
4	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
5	Parking assist unit (with parking sensor system) (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT INSPECTION.) (See BEEP SOUND ADJUSTMENT.)
6	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.) (See FUEL GAUGE SENDER UNIT INSPECTION.)

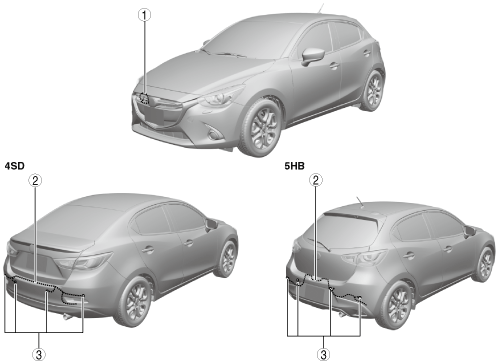

Exterior

am2zzw00014442

1	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
2	Ultrasonic sensor short-cord (with parking sensor system) (See ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.) (See ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
3	Ultrasonic sensor (with parking sensor system) (See ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
