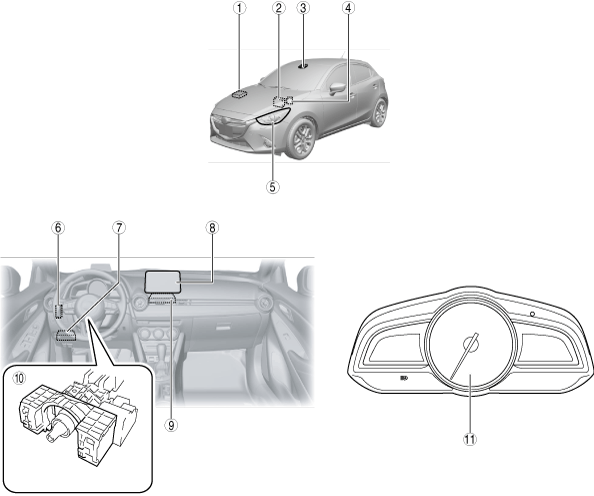

HIGH BEAM CONTROL (HBC) SYSTEM LOCATION INDEX

id152000000500

am2zzw00014358

1	PCM (SKYACTIV-D 1.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See PCM INSPECTION [SKYACTIV-D 1.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 1.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 1.5].)
2	PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
3	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).)
4	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC HU/CM INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
5	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.)
6	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
7	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See EPS CONTROL MODULE INSPECTION.)
8	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
9	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.)
10	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION.) (See START STOP UNIT INSPECTION.) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
11	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
