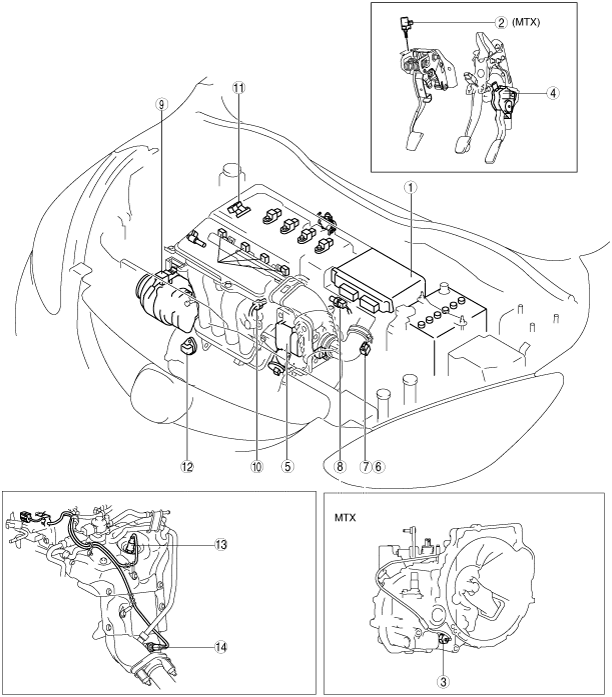

CONTROL SYSTEM LOCATION INDEX [ZJ, ZY]

id0140c4804100

am2zzw00001227

1	PCM (See PCM REMOVAL/INSTALLATION [ZJ, ZY].) (See PCM INSPECTION [ZJ, ZY].) (See PCM CONFIGURATION [ZJ, ZY].)
2	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [ZJ, ZY].)
3	Neutral switch (See NEUTRAL SWITCH INSPECTION [ZJ, ZY].)
4	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [ZJ, ZY].)
5	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [ZJ, ZY].)
6	MAF sensor (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [ZJ, ZY].)
7	IAT sensor (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [ZJ, ZY].)
8	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [ZJ, ZY].)
9	MAP sensor (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [ZJ, ZY].)
10	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [ZJ, ZY].) (See KNOCK SENSOR (KS) INSPECTION [ZJ, ZY].)
11	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [ZJ, ZY].)
12	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [ZJ, ZY].)
13	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [ZJ, ZY].)
14	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [ZJ, ZY].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [ZJ, ZY].)
