AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES

id081000801100

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Turn the ignition switch to the LOCK position.

4.  Disconnect the negative battery cable and wait for 1 min or more.

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

adejjw00001914

3.  Install the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

adejjw00002050

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver- side air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

2.  Disconnect the passenger-side air bag module connector.

am2zzw00000362

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000437

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) form the SST (Adapter harness).


Side Air Bag Module

1.  Disconnect the side air bag module connector.

2.  Connect the SST (Adapter harness) to the side air bag module as shown in the figure.

am2zzw00000363

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000390

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Remove the following parts:

(1)  A‐pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  B‐pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(7)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(9)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(12)  C‐pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(14)  Rain sensor cover (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
(15)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(16)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2.  Disconnect the curtain air bag module connector.

3.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

am2zzw00000364

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

adejjw00002050

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am2zzw00001942

5.  Install the pre-tensioner seat belt.

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

adejjw00002050

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am2zzw00000361

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool).

(See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Turn the ignition switch to the LOCK position.

3.  Disconnect the negative battery cable and wait for 1 min or more.

4.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.


Driver-side Air Bag Module

1.  Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

am2zzw00003443

3.  Install the bolts to the driver-side air bag module.

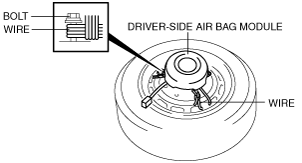

4.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the bolt installation holes of the air bag module at least 4 times.

am2zzw00003444

Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

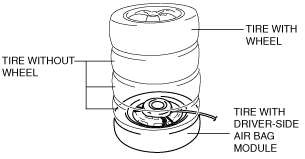

5.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000366

6.  Secure the tires with wire.

acxuuw00001276

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

adejjw00002057

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver-side air bag module (both inflators).

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side Air Bag Module

1.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Glove compartment cover (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
(3)  Glove compartment damper (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
(4)  Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].) (See KEYLESS RECEIVER REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM].)

2.  Remove the passenger-side air bag module.(See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

am2zzw00000367

4.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and around the bolts at least 4 times as shown in the figure.

am2zzw00000368

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

5.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000369

6.  Secure the tires with wire.

acxuuw00001276

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000391

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module (both inflators).

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side Air Bag Module

1.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2.  Remove the front seat back trim and pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [VEHICLES WITH SIDE AIR BAGS].)

3.  Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4.  Install the nuts to the side air bag module as shown in the figure, and connect the SST (Adapter harness).

am2zzw00000370

5.  Install the nuts to the side air bag module.

6.  Place the padded surface of the side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and around the bolts at least 4 times.

am2zzw00000371

Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

7.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000372

8.  Secure the tires with wire.

acxuuw00001276

9.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

10.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

11.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

12.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

13.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

14.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain Air Bag Module

1.  Remove the following parts:

(1)  A‐pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  B‐pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(7)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(9)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(10)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(12)  C‐pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(14)  Rain sensor cover (vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
(15)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(16)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2.  Remove the curtain air bag module.

(See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

am2zzw00000373

Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

4.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

am2zzw00000374

5.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

am2zzw00000376

Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install the air bag module securely.

6.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

am2zzw00000377

7.  Secure the tires with wire.

acxuuw00001276

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

am2zzw00000361

Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Pre-tensioner Seat Belt

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

4.  Remove the pre-tensioner seat belt and connect the SST (Adapter harness) as shown in the figure. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

am2zzw00001942

5.  Put the pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25mm2{0.002in2} or more) through the tire and the bolt installation holes at least 4 times.

am2zzw00000378

Warning
•  If the pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the pre-tensioner seat belt to the tire, make sure the pre-tensioner part is inside the tire.

6.  Stack the tire with the pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

am2zzw00000379

7.  Secure the tires with wire.

acxuuw00001276

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am2zzw00000490

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft}away from the vehicle.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.

am2zzw00000361

Warning
•  The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
