HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER (MZR 1.3, MZR 1.5)]

id0740a28036j2

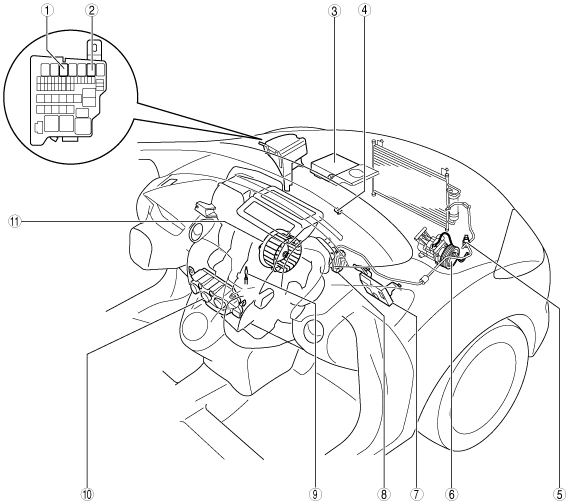

L.H.D.

am2zzw00005533

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	PCM (See PCM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See PCM INSPECTION [MZR 1.3, MZR 1.5].) (SeePCM CONFIGURATION [MZR 1.3, MZR 1.5].)
4	Engine coolant temperature sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
5	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
7	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
8	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
9	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
10	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
11	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)

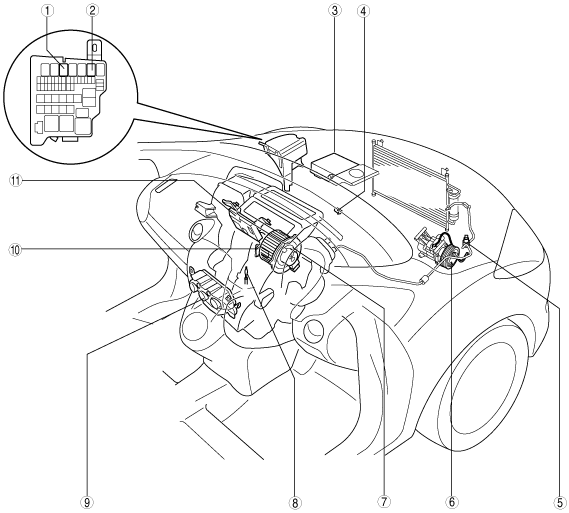

R.H.D.

am2zzw00005534

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	PCM (See PCM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See PCM INSPECTION [MZR 1.3, MZR 1.5].) (SeePCM CONFIGURATION [MZR 1.3, MZR 1.5].)
4	Engine coolant temperature sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR 1.3, MZR 1.5].)
5	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
6	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
7	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
8	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
9	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].) (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
10	Resistor (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
11	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
