CONTROL SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

id0140hf106300

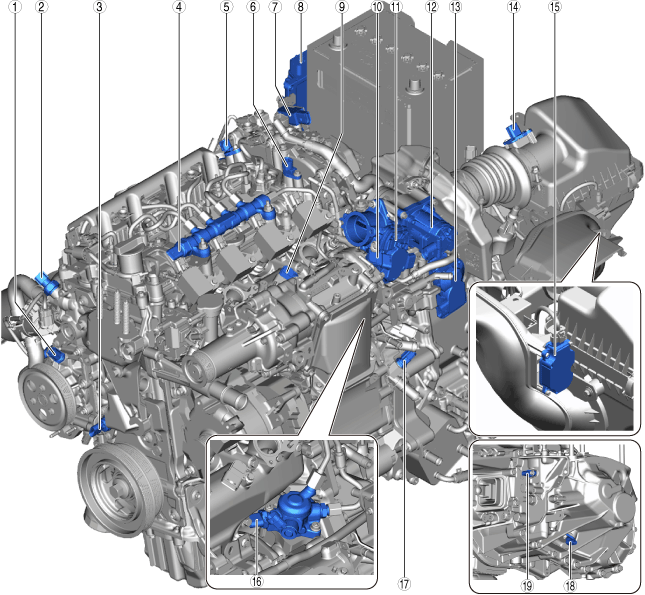

Engine Compartment

ac30zw00005246

1
ECT sensor No.2
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-X 2.0].)
2
Water pressure sensor
(See WATER PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See WATER PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
3
Engine oil temperature sensor/Engine oil pressure sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
4
High fuel pressure sensor/High fuel temperature sensor
(See HIGH FUEL PRESSURE SENSOR/HIGH FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See HIGH FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See HIGH FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
5
Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
6
Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
7
EGR pressure sensor
(See EGR PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See EGR PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
8
PCM (BARO sensor)
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See PCM INSPECTION [SKYACTIV-X 2.0].)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-X 2.0].)
9
Boost air pressure sensor/Boost air temperature sensor
(See BOOST AIR PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See BOOST PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
10
MAP sensor/IAT sensor No.2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No.2 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-X 2.0].)
11
Air bypass valve position sensor
(See AIR BYPASS VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See AIR BYPASS VALVE POSITION SENSOR INSPECTION [SKYACTIV-X 2.0].)
12
EGR valve position sensor
(See EGR VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See EGR VALVE POSITION SENSOR INSPECTION [SKYACTIV-X 2.0].)
13
TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
14
MAF sensor/IAT sensor No.1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-X 2.0].)
15
FRESH-AIR DUCT VALVE POSITION SENSOR*
(See FRESH-AIR DUCT VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See FRESH-AIR DUCT VALVE POSITION SENSOR INSPECTION [SKYACTIV-X 2.0].)
16
Low fuel pressure sensor/low fuel temperature sensor
(See LOW FUEL PRESSURE SENSOR/LOW FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See LOW FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
(See LOW FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
17
ECT sensor No.3
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-X 2.0].)
18
Neutral sensor No.2
(See NEUTRAL SENSOR INSPECTION [SKYACTIV-X 2.0].)
19
Neutral sensor No.1
(See NEUTRAL SENSOR INSPECTION [SKYACTIV-X 2.0].)

*  :Vehicles with fresh-air duct valve actuator

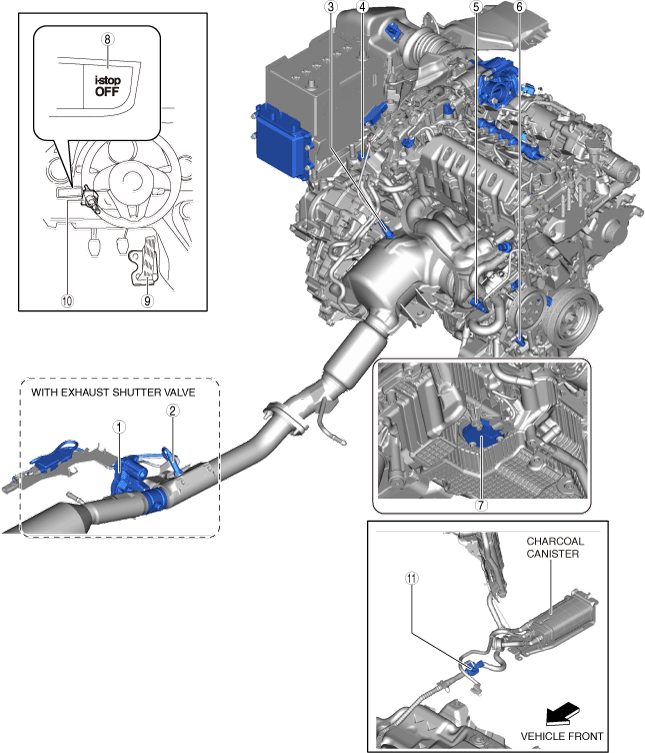

Except Engine Compartment

am3zzw00036195

1
Exhaust shutter valve position sensor (With exhaust shutter valve)
(See EXHAUST SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See EXHAUST SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-X 2.0].)
2
NOx sensor (With exhaust shutter valve)
(See NOx SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See NOx SENSOR INSPECTION [SKYACTIV-X 2.0].)
3
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-X 2.0].)
4
GPF pressure sensor
(See GPF PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See GPF PRESSURE SENSOR INSPECTION [SKYACTIV-X 2.0].)
5
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-X 2.0].)
6
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
7
Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-X 2.0].)
8
i-stop OFF switch
(See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See i-stop OFF SWITCH INSPECTION [SKYACTIV-X 2.0].)
9
APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-X 2.0].)
10
Clutch stroke sensor (MTX)
(See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-X 2.0].)
11
Fuel tank pressure sensor (Chinese specs.)
