HVAC BASIC SYSTEM LOCATION INDEX [(E)]

id0711008017x2


L.H.D.

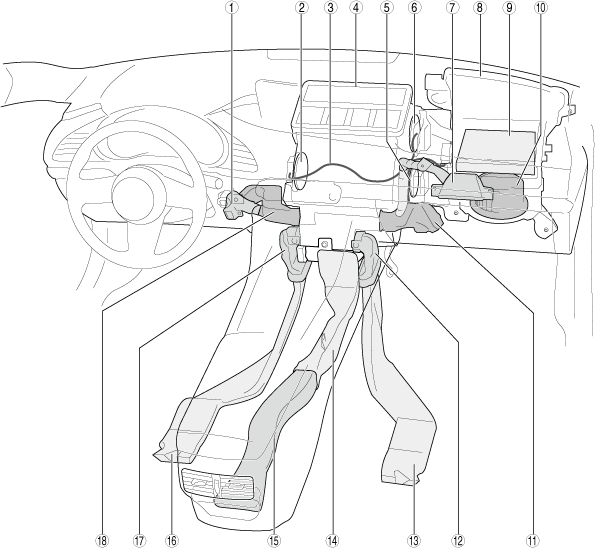

Structural view

am3zzw00028187

1
Driver-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
2
Driver-side air mix main link (full-auto air conditioner)
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
3
A/C unit short-cord
(See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION [(E)].)
4
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION [(E)].)
(See A/C UNIT DISASSEMBLY/ASSEMBLY [(E)].)
5
Passenger-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
6
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
7
Passenger-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
8
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION [(E)].)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY [(E)].)
9
Air filter
(See AIR FILTER REMOVAL/INSTALLATION [(E)].)
(See AIR FILTER INSPECTION.)
10
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)
(See BLOWER MOTOR INSPECTION [(E)].)
11
Passenger-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
12
Passenger-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
13
Passenger-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
14
Rear vent duct No.1 (With rear vent)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
15
Rear vent duct No.2 (With rear vent)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
16
Driver-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
17
Driver-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
18
Driver-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)


Structural view (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am3zzw00028188

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

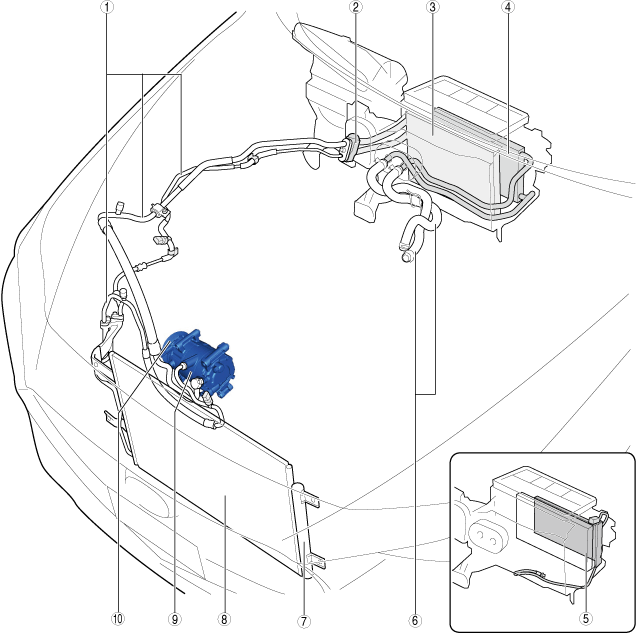

Structural view (SKYACTIV-D 1.8)

am3zzw00028189

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
PTC heater (With PTC heater)
(See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER REMOVAL/INSTALLATION.)
(See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER INSPECTION.)
6
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
7
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
8
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
(See CONDENSER INSPECTION [SKYACTIV-D 1.8].)
9
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
10
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.8].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 1.8].)

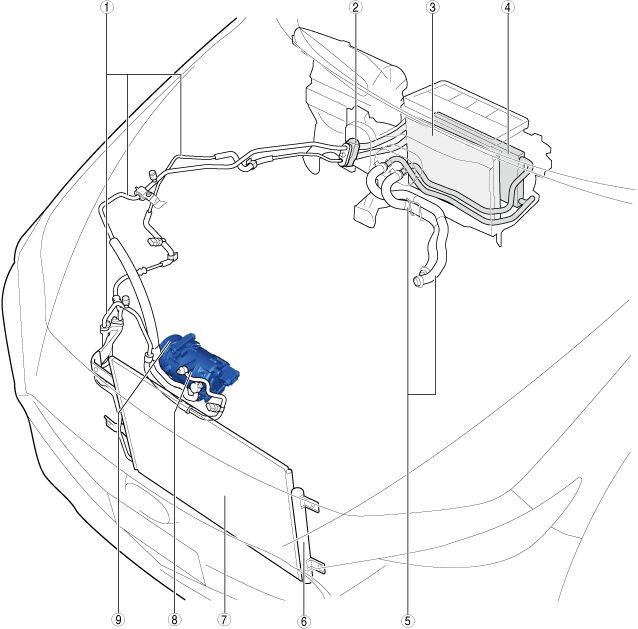

Structural view (SKYACTIV-X 2.0)

am3zzw00035266

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See CONDENSER INSPECTION [SKYACTIV-X 2.0].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-X 2.0].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-X 2.0].)


R.H.D.

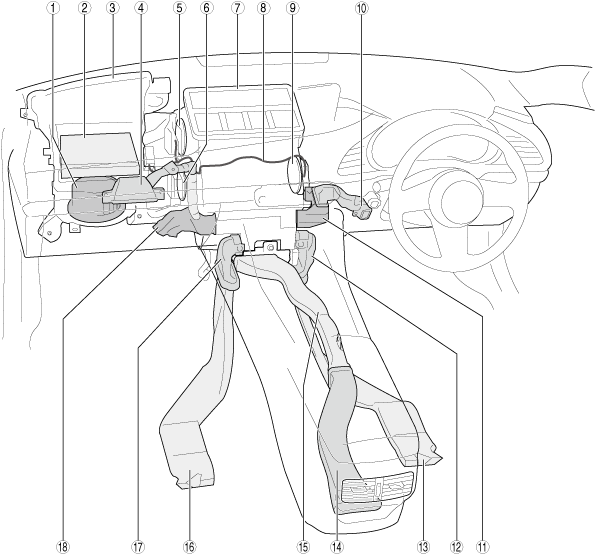

Structural view

am3zzw00028190

1
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)
(See BLOWER MOTOR INSPECTION [(E)].)
2
Air filter
(See AIR FILTER REMOVAL/INSTALLATION [(E)].)
(See AIR FILTER INSPECTION.)
3
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION [(E)].)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY [(E)].)
4
Passenger-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
5
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
6
Passenger-side air mix main link
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
7
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION [(E)].)
(See A/C UNIT DISASSEMBLY/ASSEMBLY [(E)].)
8
A/C unit short-cord
(See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION [(E)].)
9
Driver-side air mix main link (full-auto air conditioner)
(See AIR MIX MAIN LINK REMOVAL/INSTALLATION.)
10
Driver-side front heat duct No.2
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
11
Driver-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)
12
Driver-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
13
Driver-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
14
Rear vent duct No.2 (With rear vent)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
15
Rear vent duct No.1 (With rear vent)
(See REAR VENT DUCT REMOVAL/INSTALLATION.)
16
Passenger-side rear heat duct No.2
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
17
Passenger-side rear heat duct No.1
(See REAR HEAT DUCT REMOVAL/INSTALLATION [(E)].)
18
Passenger-side front heat duct No.1
(See FRONT HEAT DUCT REMOVAL/INSTALLATION [(E)].)


Structural view (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am3zzw00028191

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

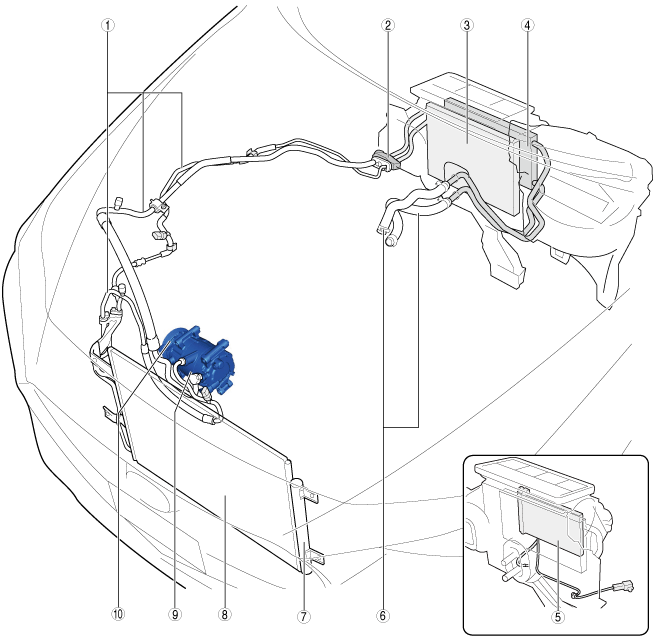

Structural view (SKYACTIV-D 1.8)

am3zzw00028192

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
PTC heater (With PTC heater)
(See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER REMOVAL/INSTALLATION.)
(See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER INSPECTION.)
6
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
7
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
8
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
(See CONDENSER INSPECTION [SKYACTIV-D 1.8].)
9
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
10
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.8].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 1.8].)


Structural view (SKYACTIV-X 2.0)

am3zzw00035267

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION [(E)].)
3
Evaporator
(See EVAPORATOR INSPECTION [(E)].)
4
Heater core
(See HEATER CORE INSPECTION [(E)].)
5
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
7
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
(See CONDENSER INSPECTION [SKYACTIV-X 2.0].)
8
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-X 2.0].)
(See MAGNETIC CLUTCH INSPECTION [SKYACTIV-X 2.0].)
