REAR SEAT BELT REMOVAL/INSTALLATION [(E)]


id0811008008x2

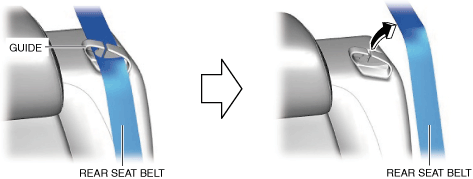

Without Rear Pre-tensioner Seat Belt


4SD

Caution
•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the rear seat belt from the guide.

am3zzw00028355

4.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)
(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

5.  Remove the bolts.

am3zzw00028356

6.  Remove the rear seat belt retractor.

7.  Remove the rear seat belt.

8.  Install in the reverse order of removal. (See Bolt installation note.)


Bolt installation note

1.  Tighten the bolts in the order shown in the figure.

am3zzw00034818


5HB

Caution
•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the rear seat belt from the guide.

am3zzw00028357

4.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(6)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(7)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

5.  Pull away the trunk side trim enough to secure a space for a hand to be inserted between body panel and trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

6.  Remove the parking assist unit (ultrasonic) (rear seat belt (RH) (with parking assist unit (ultrasonic)). (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.)

7.  Detach the clip (with clip).

am3zzw00028358

8.  Remove the bolts.

9.  Remove the rear seat belt retractor.

10.  Remove the rear seat belt.

11.  Install in the reverse order of removal. (See Bolt installation note.)


Bolt installation note

1.  Tighten the bolts in the order shown in the figure.

am3zzw00034819


With Rear Pre-tensioner Seat Belt


4SD

Warning
•  Handling the rear seat belt (rear pre-tensioner seat belt) improperly can accidentally deploy the pre-tensioner, which may seriously injure you. Read the air bag system service warnings and cautions before handling the rear seat belt (rear pre-tensioner seat belt).
(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)
(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
Caution
•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the rear seat belt from the guide.

am3zzw00028355

4.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)
(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(9)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

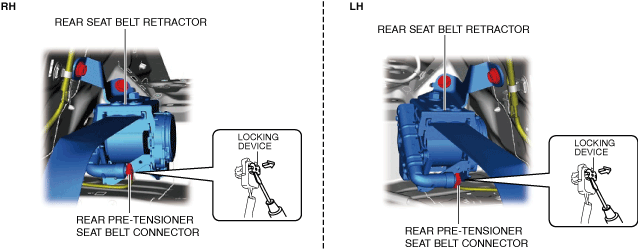

5.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am3zzw00028359

6.  Disconnect the rear pre-tensioner seat belt connector.

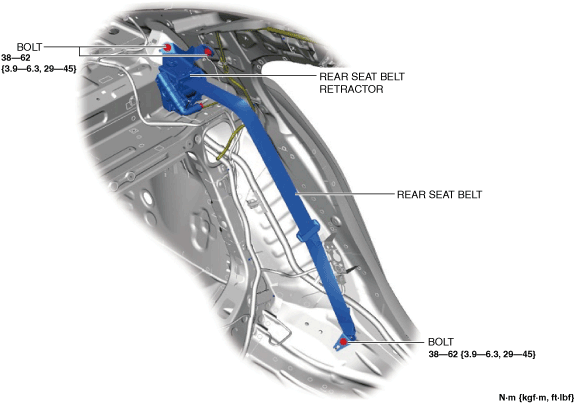

7.  Remove the bolts.

am3zzw00028360

8.  Remove the rear seat belt retractor.

9.  Remove the rear seat belt.

10.  Install in the reverse order of removal. (See Bolt installation note.)

11.  Switch the ignition ON (engine off or on).

12.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION.)

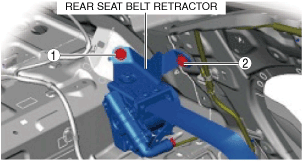

Bolt installation note

1.  Tighten the bolts in the order shown in the figure.

am3zzw00034820


5HB

Warning
•  Handling the rear seat belt (rear pre-tensioner seat belt) improperly can accidentally deploy the pre-tensioner, which may seriously injure you. Read the air bag system service warnings and cautions before handling the rear seat belt (rear pre-tensioner seat belt).
(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
Caution
•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the rear seat belt from the guide.

am3zzw00028357

4.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(6)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(7)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(8)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

5.  Pull away the trunk side trim enough to secure a space for a hand to be inserted between body panel and trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [(E)].)

6.  Remove the parking assist unit (ultrasonic) (rear seat belt (RH) (with parking assist unit (ultrasonic)). (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.)

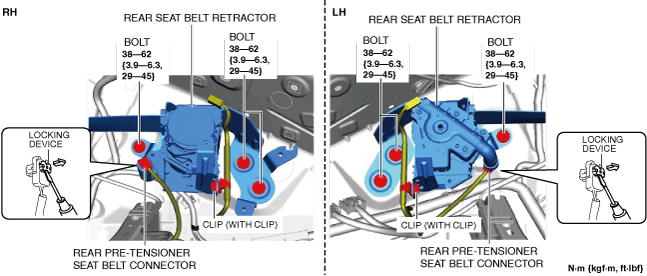

7.  Detach the clip (with clip).

am3zzw00028361

8.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

9.  Disconnect the rear pre-tensioner seat belt connector.

10.  Remove the bolts.

11.  Remove the bolt.

am3zzw00028362

12.  Remove the rear seat belt retractor.

13.  Remove the rear seat belt.

14.  Install in the reverse order of removal. (See Bolt installation note.)

15.  Switch the ignition ON (engine off or on).

16.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION.)


Bolt installation note

1.  Tighten the bolts in the order shown in the figure.

am3zzw00034821
