METER HOOD REMOVAL/INSTALLATION

id091700800900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(2)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(6)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(7)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(8)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12)  Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(13)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(14)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(15)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(16)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(17)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

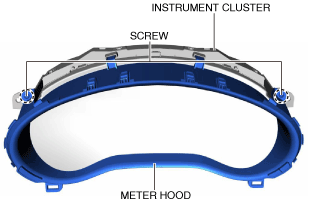

3.  Remove the screws.

am3zzw00021797

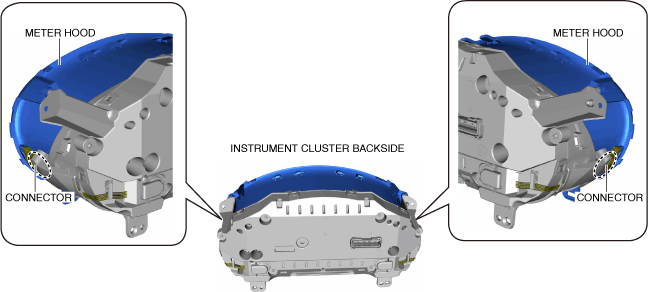

4.  Disconnect the connectors.

am3zzw00021798

5.  Remove the meter hood from the instrument cluster.

am3zzw00021799

6.  Install in the reverse order of removal.
