INSTRUMENTATION/DRIVER INFO. LOCATION INDEX [(E)]

id0922000102x2

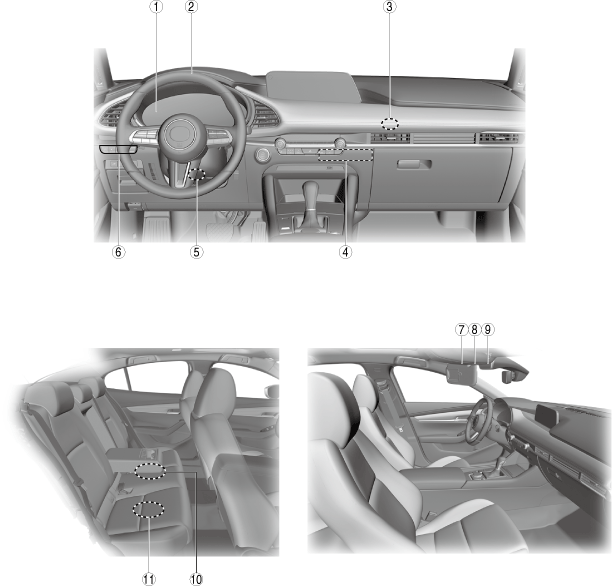

Interior

am3zzw00036363

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION [(E)].)
2	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(E)].) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY.) (See ACTIVE DRIVING DISPLAY INSPECTION.)
3	TEL antenna (with emergency call system) (See TEL ANTENNA REMOVAL/INSTALLATION [(E)].) (See TEL ANTENNA INSPECTION [(E)].)
4	Emergency call unit (with emergency call system) (See EMERGENCY CALL UNIT REMOVAL/INSTALLATION.) (See EMERGENCY CALL UNIT INSPECTION.) (See EMERGENCY CALL UNIT BATTERY REMOVAL/INSTALLATION.) (See EMERGENCY CALL UNIT FINALIZATION PROCEDURE.) (See ACTIVATING REMOTE CONTROL BY SMART PHONE.)
5	Front Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
6	Parking sensor OFF switch (with parking sensor system) (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION.) (See PARKING SENSOR OFF SWITCH INSPECTION.)
7	Emergency call speaker/microphone (with emergency call system) (See EMERGENCY CALL SPEAKER/MICROPHONE REMOVAL/INSTALLATION.) (See EMERGENCY CALL SPEAKER/MICROPHONE INSPECTION.)
8	Emergency call switch (with emergency call system) (See EMERGENCY CALL SWITCH REMOVAL/INSTALLATION.) (See EMERGENCY CALL SWITCH INSPECTION.)
9	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
10	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(E)].) (See FUEL GAUGE SENDER UNIT INSPECTION [(E)].)
11	Fuel gauge sender unit (sub) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(E)].) (See FUEL GAUGE SENDER UNIT INSPECTION [(E)].)

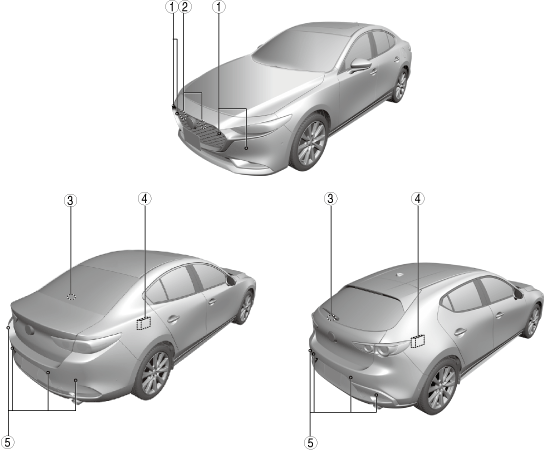

Exterior

am3zzw00030497

1	Front ultrasonic sensor (with parking sensor system, with front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See FRONT ULTRASONIC SENSOR INSPECTION.) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
2	Horn (See HORN REMOVAL/INSTALLATION.) (See HORN INSPECTION.)
3	Rear Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.) (See NOTIFICATION AND WARNING SPEAKER INSPECTION.)
4	Parking assist unit (ultrasonic) (with parking sensor system) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION.) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION.)
5	Rear ultrasonic sensor (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.) (See REAR ULTRASONIC SENSOR INSPECTION.) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
