ANTENNA FEEDER NO.1 INSPECTION
id092000812400
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Upper column cover (See
COLUMN COVER REMOVAL/INSTALLATION.)
-
- (2) Instrument cluster (See
INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
-
- (3) Center panel (See
CENTER PANEL REMOVAL/INSTALLATION.)
-
- (4) Audio unit (See
AUDIO UNIT REMOVAL/INSTALLATION.)
-
- (5) Center cover (See
CENTER COVER REMOVAL/INSTALLATION.)
-
- (6) Dashboard upper panel (See
DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)
-
- (7) Hole cover (See
HOLE COVER REMOVAL/INSTALLATION.)
-
- (8) Multi information display (See
MULTI INFORMATION DISPLAY REMOVAL/INSTALLATION.)
-
3. Disconnect the GPS antenna connector. (VIN:JM0**, JM7**) (See
GPS ANTENNA REMOVAL/INSTALLATION.)

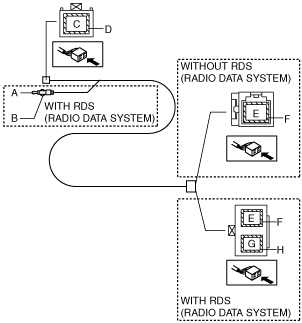

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.
-
• If not as indicated in the table, replace antenna feeder No.1.
