FUEL SYSTEM LOCATION INDEX [MZ-CD 1.6 (Y6)]

id0114c3800100

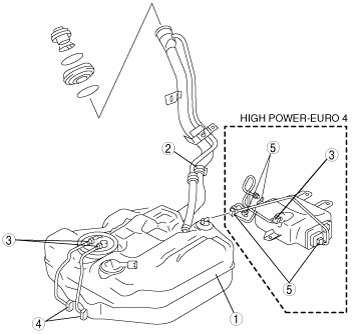

Fuel Tank Side

am3zzw00001469

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL TANK INSPECTION [MZ-CD 1.6 (Y6)].)
2	Nonreturn valve (See NONRETURN VALVE INSPECTION [MZ-CD 1.6 (Y6)].)
3	Quick release connector (Type A) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
4	Quick release connector (Type B) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
5	Quick release connector (Type D) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

Engine Compartment Side

am3zzw00001470

1	Fuel filter/Fuel warmer (See FUEL FILTER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL WARMER INSPECTION (European (L.H.D.) specs.) [MZ-CD 1.6 (Y6)].)
2	Fuel pump (See FUEL PUMP REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL METERING VALVE INSPECTION [MZ-CD 1.6 (Y6)].)
3	Common rail (See COMMON RAIL REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See COMMON RAIL INSPECTION [MZ-CD 1.6 (Y6)].)
4	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See FUEL INJECTOR INSPECTION [MZ-CD 1.6 (Y6)].)
5	Quick release connector (Type C) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
6	Quick release connector (Type D) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
7	Quick release connector (Type G) (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
