FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]
id0740a2801300
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (2) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (3) Upper panel (See UPPER PANEL REMOVAL.)(See UPPER PANEL INSTALLATION.)
-
- (4) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)
-
- (6) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (7) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (8) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (9) CD player (with CD player) (See CD PLAYER REMOVAL.)(See CD PLAYER INSTALLATION.)
-
- (10) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (11) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
-
3. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

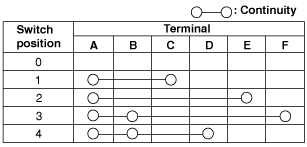

4. Verify that the continuity between the fan switch terminals as indicated in the table.
-
