MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION
id092200667000
1. Set the wheel blocks for both the front and rear wheels (without electric parking brake).
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
3. Shift the selector lever from the P position to the D position (ATX).
4. Remove the following parts:
- (1) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Passenger-side side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (3) Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
-
- (4) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)
-
- (6) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (7) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (8) Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (9) CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
-
- (10) DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
-
- (11) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (12) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (13) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (14) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
-
- (15) floor insulator (See FLOOR INSULATOR REMOVAL/INSTALLATION.)
-
5. Move the spacer in the direction of the arrow shown in the figure and detach the tabs.
6. Remove the spacer.
7. Remove the nuts.
8. Remove the cover.
9. Remove the screw.

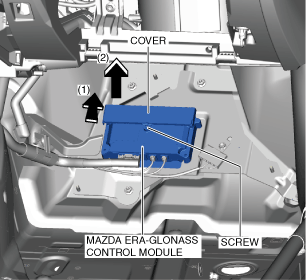

10. Move the cover in the direction of the arrows in the order of (1) and (2) and remove it from the Mazda ERA-GLONASS control module.
11. Disconnect the connector.
12. Remove the Mazda ERA-GLONASS control module battery.
13. Install in the reverse order of removal.
