MAZDA ERA-GLONASS CONTROL MODULE SHORT-CORD INSPECTION

id092200667200

1.  Set the wheel blocks for both the front and rear wheels (without electric parking brake).

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(4)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(5)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(6)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8)  Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(9)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(10)  DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)

(11)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(12)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(14)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(15)  floor insulator (See FLOOR INSULATOR REMOVAL/INSTALLATION.)

(16)  Mazda ERA-GLONASS control module short-cord (See FLOOR INSULATOR REMOVAL/INSTALLATION.)

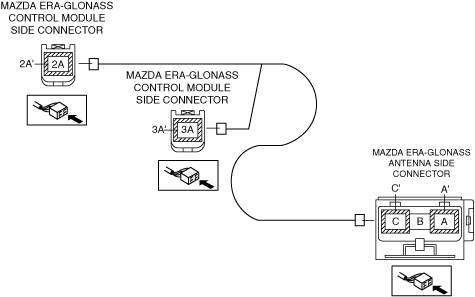

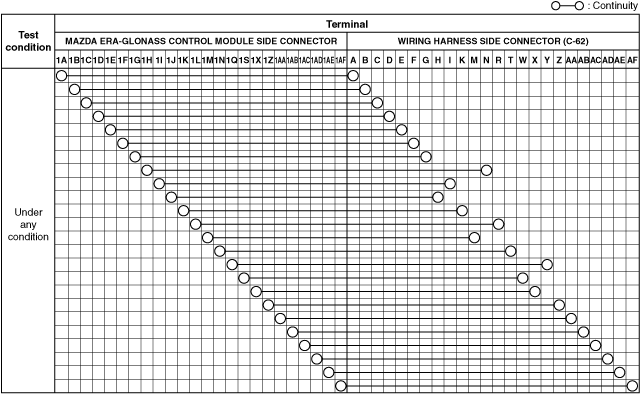

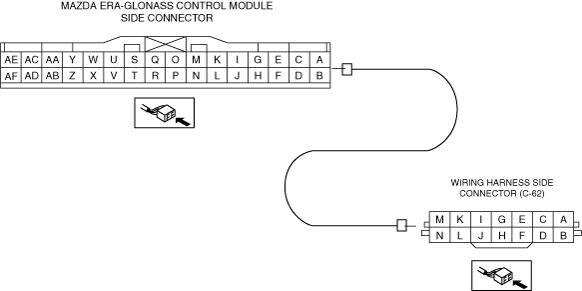

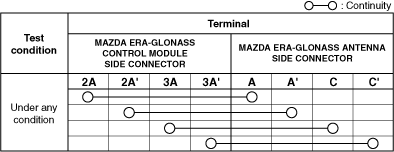

5.  Verify that the continuity between Mazda ERA-GLONASS control module short-cord terminals is as indicated in the table.

am3zzw00020422

am3zzw00020423

am3zzw00020424

am3zzw00020425

•  If not as indicated in the table, replace Mazda ERA-GLONASS control module short-cord.
