A/C COMPRESSOR REMOVAL/INSTALLATION


id071100801000

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Discharge the refrigerant. (See REFRIGERANT CHARGING.)

3.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

4.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR-CD 2.2].)

5.  Remove the water hose bracket.

am6xuw00000992

Caution
•  If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

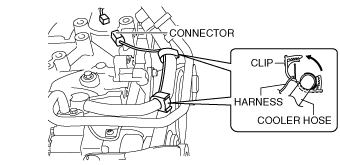

6.  Remove the clip. (MZR 2.0, MZR 2.0 DISI i-stop) (See Clip Installation Note.)

am3zzw00011927

7.  Disconnect the connector.

8.  Remove the bolt A.

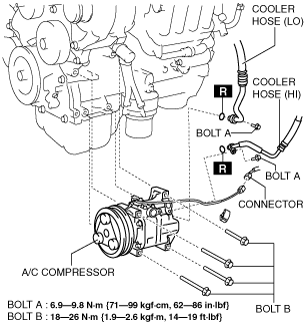

MZR 1.5, MZR 1.6

am3zzw00006709

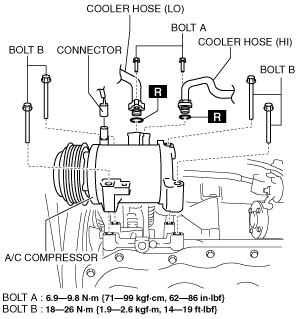

SKYACTIV-G 2.0

am3uuw00007672

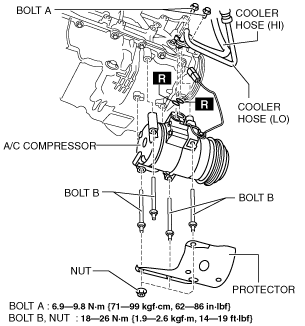

MZR 2.0, MZR 2.0 DISI i-stop

am3zzw00006949

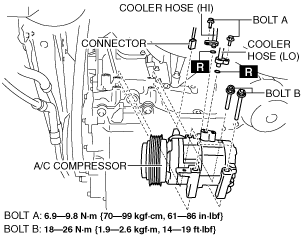

MZR 2.5, MZR 2.3 DISI Turbo

am3zzw00010965

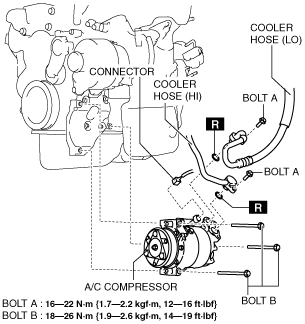

MZ-CD 1.6

am3zzw00009730

MZR-CD 2.2

am3zzw00006711

9.  Remove the cooler hose (LO). (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

10.  Remove the cooler hose (HI). (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

11.  Remove the nut and protector (MZR 2.0, MZR 2.0 DISI i-stop).

12.  Remove the bolt B.

13.  Remove the A/C compressor. Do not allow compressor oil to spill. (See A/C Compressor Installation Note.)

14.  Install in the reverse order of removal.

15.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


A/C Compressor Installation Note

Caution
•  Due to the high moisture-absorption characteristics of the compressor oil, it may absorb moisture if left over a long period of time thereby negatively affecting A/C operation. Drain the compressor oil and refill within 10 min. of each other.

1.  Rotate new A/C compressor shaft six to eight revolutions while collecting refrigerant oil in a clean measuring device. Use this refrigerant oil to refill new compressor. Do not allow refrigerant oil to become contaminated.

2.  Rotate old A/C compressor shaft six to eight revolutions while collecting refrigerant oil in a separate, clean measuring device.

3.  Compare those oil amounts. The amount of the oil drained from the new A/C compressor should be greater than the old one.

4.  Pour the same amount oil of drained from the old A/C compressor back into the new A/C compressor.

am8rrw00000755

A/C compressor oil type
•  FD46XG
―  SKYACTIV-G 2.0
―  MZR 2.0
―  MZR 2.0 DISI i-stop
―  MZR 2.3 DISI Turbo
―  MZR 2.5
•  ATOMOS GU10
―  MZR 1.5
―  MZR 1.6
―  MZR-CD 2.2
•  SP-10
―  MZ-CD 1.6
A/C compressor oil sealed volume (approx. quantity)
•  100 ml {100 cc, 3.38 fl oz}
―  SKYACTIV-G 2.0
•  110 ml {110 cc, 3.72 fl oz}
―  MZ-CD 1.6
•  120 ml {120 cc, 4.06 fl oz}
―  MZR 2.0
―  MZR 2.0 DISI i-stop
―  MZR 1.5
―  MZR 1.6
―  MZR-CD 2.2
―  MZR 2.3 DISI Turbo
―  MZR 2.5


Clip Installation Note

1.  Install the clip as shown in the figure.

am3uuw00007675
