REAR WASHER HOSE REMOVAL/INSTALLATION

id091900801600

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

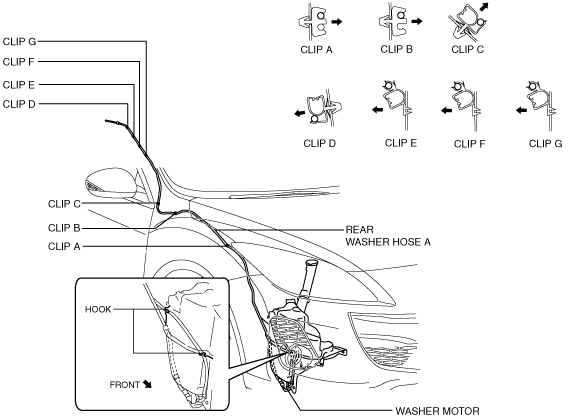

3.  Disconnect rear washer hose A from the washer motor.

am3zzw00011334

4.  Remove the rear washer hose A from clip A, B, C, D, E, F, G.

5.  Disconnect joint pipes and remove rear washer hose A.

6.  Partially peel back the seaming welts.

7.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof only)

(2)  A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(13)  Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.)

(14)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(15)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(16)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Peel off the tape and remove rear washer hose B.

am3zzw00011335

9.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

10.  Partially peel back the grommet.

am3zzw00011336

11.  Remove the bracket in the direction of the arrow (2) shown in the figure while pressing the bracket tabs in the direction of the arrow (1).

am3zzw00011337

12.  Remove the rear washer hose C from clip H, I, J, K.

am3zzw00011338

13.  Disconnect joint pipes and remove rear washer hose C.

14.  Disconnect check valve and remove rear washer hose C.

15.  Remove rear washer hose D from the rear washer nozzle.

16.  Install in the reverse order of removal.
