ACCESSORY SOCKET REMOVAL/INSTALLATION

id092000800400


Front

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

3.  Remove the shift knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

4.  Remove the selector lever knob. (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

5.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

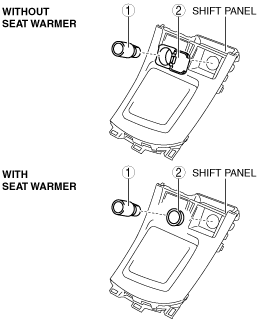

6.  Remove in the order indicated in the table.

am3uuw00002745

1
Socket
(See Socket Removal Note.)
2
Cap
(See Cap Removal Note.)

7.  Install in the reverse order of removal.


Rear

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(2)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am3uuw00002740

1
Socket
(See Socket Removal Note.)
2
Cap
(See Cap Removal Note.)

4.  Install in the reverse order of removal.


Socket Removal Note

1.  Remove the socket in the direction of the arrow (2) shown in the figure while opening the cap in the direction of the arrow (1) using a tape-wrapped fastener remover.

am3uuw00002741


Cap Removal Note

1.  Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1).

am6zzw00001361
