CENTER ROOF ANTENNA REMOVAL/INSTALLATION

id092000801600

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Partially peel back the seaming welts.

5.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(14)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(15)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

6.  Disconnect the connector.

Type A

am3uuw00002712

Type B

am3uuw00002710

Type C

am3zzw00013278

7.  Remove the ground plate.

8.  Remove the antenna rod. (With type A or type B)

9.  Remove the center roof antenna in the direction of the arrow (2) shown in the figure while pressing the center roof antenna tabs in the direction of the arrow (1).

Type A

am3uuw00002713

Type B

am3uuw00002711

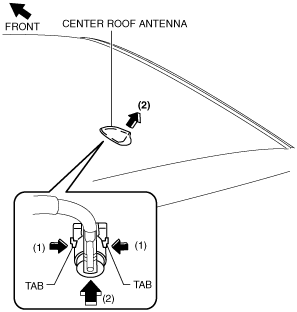

Type C

am3zzw00013279

10.  Remove the center roof antenna.

11.  Install in the reverse order of removal.

12.  After installation, verify that the rubber of the center roof antenna is installed to the roof panel with no space between them.
