AUXILIARY JACK INSPECTION

id092000812600

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(7)  Auxiliary jack (See AUXILIARY JACK REMOVAL/INSTALLATION.)

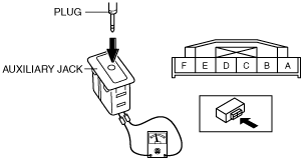

3.  Connect a commercially-available nonresistant plug to the auxiliary jack.

am6xuw00001494

4.  Verify that the continuity between the auxiliary jack terminals is as indicated in the table.

am3zzw00009856

•  If not as indicated in the table, replace the auxiliary jack.
