RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0921004927z5

1.  Disconnect the negative battery cable.

(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(10)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the relay block. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

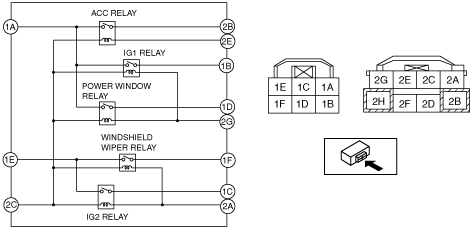

4.  Verify that the continuity is as indicated in the table.

am3uuw00002510

•  If not as indicated in the table, replace the relay block.

am3zzw00011920
