MULTI INFORMATION DISPLAY REMOVAL/INSTALLATION

id092200013100

Caution
•  When replacing the multi information display, the configuration procedure must be performed before removing the multi information display. The multi information display will not operate normally if it is replaced without performing the configuration procedure.

1.  Perform the multi information display configuration when replacing it. (See INFORMATION DISPLAY/MULTI INFORMATION DISPLAY CONFIGURATION.)

2.  Disconnect the negative battery cable.

(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)
(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
(See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
(4)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
(5)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)
(6)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)
(7)  GPS antenna (with car-navigation system) (See GPS ANTENNA REMOVAL/INSTALLATION.)
(8)  Hole cover (See HOLE COVER REMOVAL/INSTALLATION.)

4.  Remove the wiring harness clip.

am3uuw00004631

5.  Remove the screws.

6.  Pull the multi information display outward and remove it

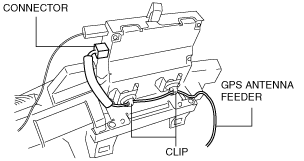

7.  Disconnect the connector and clips.

am3uuw00004974

8.  Remove the GPS antenna feeder.

9.  Disconnect the connector A and B.

am3uuw00004975

10.  Remove the multi information display.
