EXTERIOR LIGHTING SYSTEM


id091800400500


Outline

•  Projector type headlights have been adopted to the front combination lights.
•  Auto light system has been adopted in which TNS and headlights automatically and optimally illuminate and turn off. (With auto light system)
•  A high beam control (HBC) system has been adopted which automatically changes the headlights to low beams when it recognizes an oncoming vehicle, a vehicle ahead, or travel through city streets. (With high beam control (HBC) system)
•  Discharge headlights that emit light over a wide area have been adopted. (With discharge headlight system)
•  A headlight manual leveling system has been adopted which changes the headlight LO optical axis according to the operation of the headlight leveling switch. (With headlight manual leveling system)
•  A headlight auto leveling system has been adopted which automatically adjusts the headlight optical axis up and down. (With headlight auto leveling system)
•  An adaptive front lighting system (AFS) has been adopted which changes the optical axis to the direction in which the vehicle is moving according to the amount of steering operation. (With adaptive front lighting system (AFS))
•  An emergency signal system (ESS) has been adopted which flashes the hazard warning lights if the vehicle suddenly decelerates while traveling at high speed.
•  Front turn lights have been adopted in the front bumper.
•  Front fog lights have been adopted in the front bumper. (With front fog lights)
•  Rear fog light has been adopted in the rear bumper (4SD)/liftgate light (5HB). (With rear fog light)
•  Outer mirrors with built-in side turn lights have been adopted.
•  LED type parking lights have been adopted. (With discharge headlight system)
•  LED type side turn lights have been adopted.
•  LED type brake lights/taillights have been adopted. (With rear combination lights (LED type))
•  LED type taillights have been adopted. (With trunk lid lights (4SD)/liftgate lights (5HB) (LED type))
•  LED type high-mount brake light has been adopted.
•  The front body control module (FBCM) performs exterior lighting system fail-safe. (See FRONT BODY CONTROL MODULE (FBCM).)

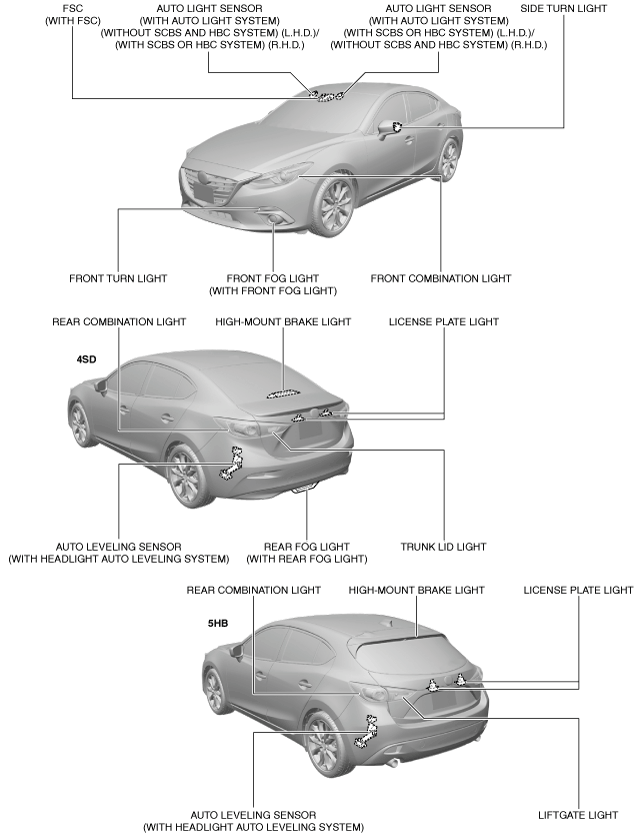

Structural View

am3uun00003001

System Wiring Diagram

am3zzn00004918
am3zzn00004917
am3zzn00004919

Operation


Headlights LO (halogen type), headlights HI (halogen type), parking lights

•  Refer to the front combination light. (See FRONT COMBINATION LIGHT.)


Headlights HI/LO (discharge type)

•  Refer to the discharge headlight system. (See DISCHARGE HEADLIGHT SYSTEM.)


Running lights (with running light system)

•  Refer to the running light system. (See RUNNING LIGHT SYSTEM.)


Front turn lights

•  Refer to the front turn light. (See FRONT TURN LIGHT.)


Front fog lights (with front fog lights)

•  Refer to the front fog light. (See FRONT FOG LIGHT.)


Side turn lights

•  Refer to the side turn light. (See SIDE TURN LIGHT.)


Rear turn lights, brake lights, taillights

•  Refer to the rear combination light. (See REAR COMBINATION LIGHT.)


Back-up lights, taillights (with trunk lid lights (4SD)/liftgate lights (5HB) (LED type))

•  Refer to the trunk lid light (4SD)/liftgate light (5HB). (See TRUNK LID LIGHT (4SD)/LIFTGATE LIGHT (5HB).)


Rear fog light (with rear fog light)

•  Refer to the rear fog light. (See REAR FOG LIGHT.)


Hazard warning lights

•  Refer to the front turn light. (See FRONT TURN LIGHT.)
•  Refer to the side turn light. (See SIDE TURN LIGHT.)
•  Refer to the rear combination light. (See REAR COMBINATION LIGHT.)


High-mount brake light

•  Refer to the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT.)


License plate lights

•  Refer to the license plate light. (See LICENSE PLATE LIGHT.)
