BLOWER UNIT REMOVAL/INSTALLATION

id071100800500


L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(5)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the air intake actuator connector.

am6zzw00015970

4.  Disconnect the blower motor connector.

5.  Detach the clips.

6.  Remove the nuts.

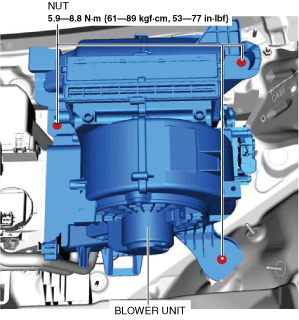

am6zzw00015971

7.  Remove the blower unit as shown in the figure.

Caution
•  When removing the blower unit, move it little by little while verifying that there is no sticking in the surrounding parts or the wiring harness. If the blower unit is removed with excessive force, surrounding parts or the blower unit could be damaged.
am6zzw00015972

8.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(5)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the instrument panel harness connectors.

am6zzw00015973

4.  Set the instrument panel harness connectors out of the way.

5.  Remove the instrument panel harness connector using a flathead screwdriver.

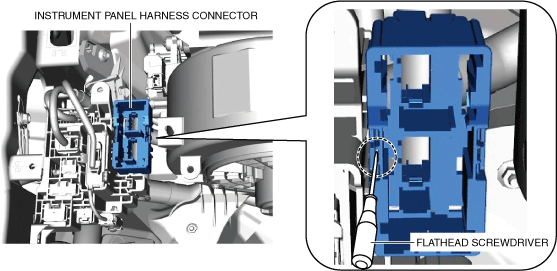

am6zzw00015974

6.  Set the instrument panel harness connector out of the way.

7.  Disconnect the air intake actuator connector.

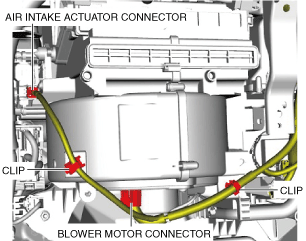

am6zzw00015975

8.  Disconnect the blower motor connector.

9.  Detach the clips.

10.  Remove the nuts.

am6zzw00015976

11.  Remove the blower unit.

12.  Install in the reverse order of removal.
