TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION

id092000031200

L.H.D.

1.   Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

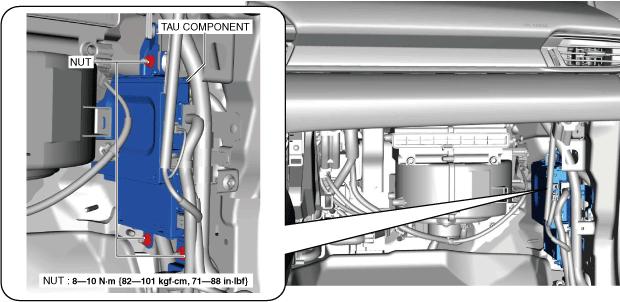

3.  Remove the nuts.

am6xuw00011020

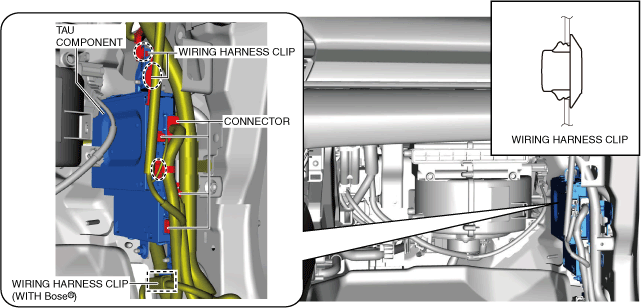

4.  Disconnect the connectors.

am6xuw00011021

5.  Pull out the wiring harness clips.

6.  Remove the TAU component.

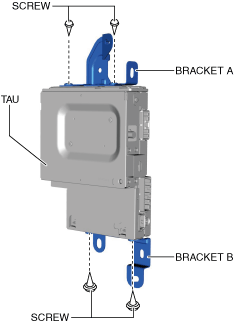

7.  Remove the screws.

am6xuw00011022

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.

R.H.D.

1.   Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

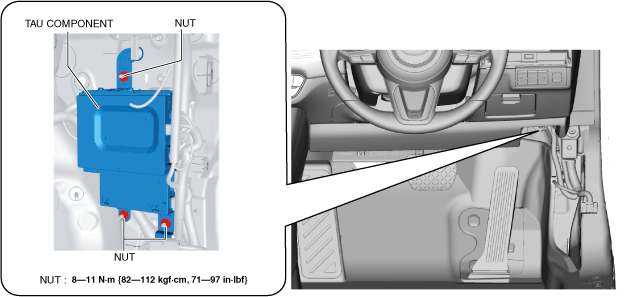

3.  Remove the nuts.

am6zzw00016507

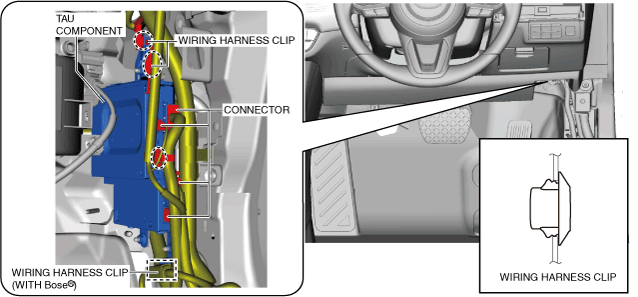

4.  Disconnect the connectors.

am6zzw00016508

5.  Remove the wiring harness clips.

6.  Remove the TAU component.

7.  Remove the screws.

am6xuw00011022

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.
