Bluetooth^® UNIT REMOVAL/INSTALLATION

id092000833000

Caution

•  The audio unit determines the presence/non-presence of a Bluetooth® unit and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery terminal is connected.

•  If the negative battery terminal is connected while the audio unit has recorded the non-presence of the Bluetooth® unit and thereafter a Bluetooth® unit is installed, the installed Bluetooth® unit will not operate.

•  When installing or removing the Bluetooth® unit, always disconnect the negative battery terminal, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the audio unit to record the presence/non-presence of the Bluetooth® unit.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(8)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

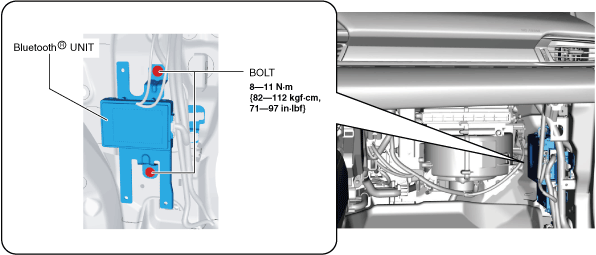

3.  Remove the bolts.

am6zzw00016708

4.  Disconnect the connector.

am6zzw00016709

5.  Pull out the wiring harness clips.

6.  Remove the Bluetooth^® unit component.

7.  Remove the screws.

am6zzw00016710

8.  Remove the Bluetooth^® unit.

9.  Install in the reverse order of removal.
