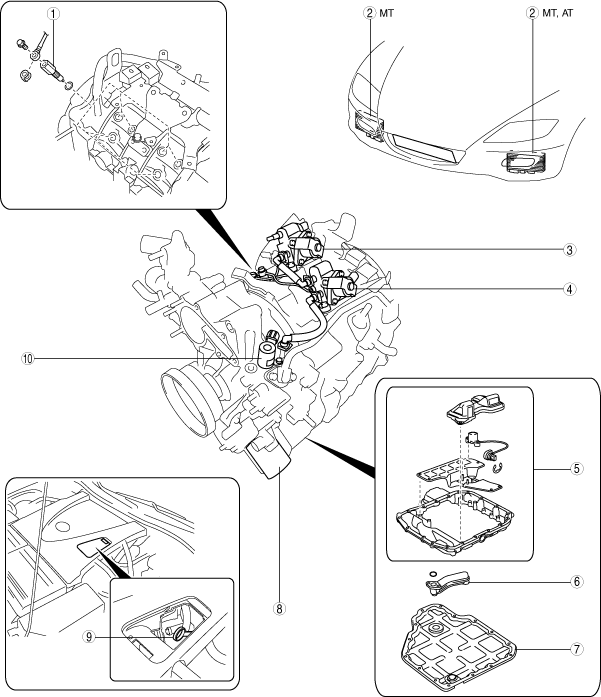

LUBRICATION SYSTEM LOCATION INDEX [13B-MSP]

id0111e4800100

ar8wzw00000732

1	Oil nozzle (See OIL NOZZLE REMOVAL/INSTALLATION [13B-MSP].) (See METERING OIL PUMP INSPECTION [13B-MSP].)
2	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [13B-MSP].)
3	Metering oil pump No.1 (See METERING OIL PUMP REMOVAL/INSTALLATION [13B-MSP].) (See METERING OIL PUMP INSPECTION [13B-MSP].)
4	Metering oil pump No.2 (See METERING OIL PUMP REMOVAL/INSTALLATION [13B-MSP].) (See METERING OIL PUMP INSPECTION [13B-MSP].)
5	Oil pan upper block component (See OIL PAN UPPER BLOCK REMOVAL/INSTALLATION [13B-MSP].)
6	Oil strainer (See OIL PAN REMOVAL/INSTALLATION [13B-MSP].)
7	Oil pan (See OIL PAN REMOVAL/INSTALLATION [13B-MSP].)
8	Oil filter (See OIL FILTER REPLACEMENT [13B-MSP].)
9	Dipstick (See ENGINE OIL LEVEL INSPECTION [13B-MSP].) (See ENGINE OIL REPLACEMENT [13B-MSP].)
10	OCV (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [13B-MSP].) (See OIL CONTROL VALVE (OCV) INSPECTION [13B-MSP].)
