INTAKE-AIR SYSTEM LOCATION INDEX [13B-MSP]

id0113z3801700

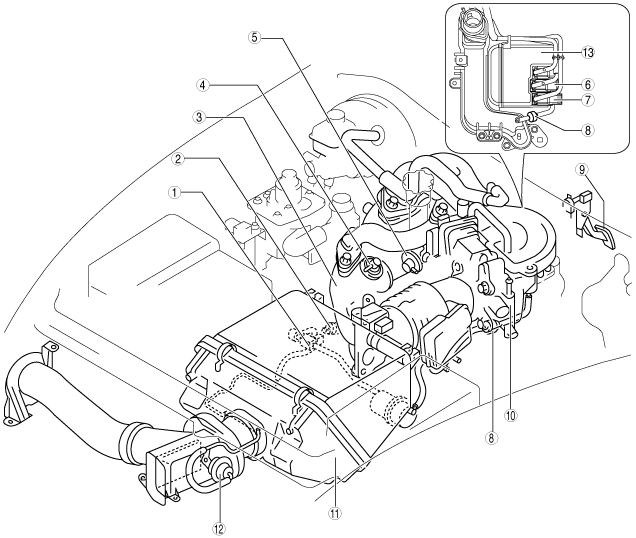

ar8wzw00000871

1	VFAD solenoid valve (with VFAD) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].) (See VARIABLE FRESH AIR DUCT (VFAD) SOLENOID VALVE INSPECTION [13B-MSP].)
2	APV motor (See INTAKE MANIFOLD REMOVAL/INSTALLATION [13B-MSP].) (See AUXILIARY PORT VALVE (APV) MOTOR INSPECTION [13B-MSP].)
3	Intake manifold (See INTAKE MANIFOLD REMOVAL/INSTALLATION [13B-MSP].) (See INTAKE MANIFOLD DISASSEMBLY/ASSEMBLY [13B-MSP].)
4	SSV actuator (See SECONDARY SHUTTER VALVE (SSV) REMOVAL/INSTALLATION [13B-MSP].) (See SECONDARY SHUTTER VALVE (SSV) ACTUATOR INSPECTION [13B-MSP].)
5	VDI actuator (See VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) VALVE REMOVAL/INSTALLATION [13B-MSP].) (See VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) ACTUATOR INSPECTION [13B-MSP].)
6	SSV solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].) (See SECONDARY SHUTTER VALVE (SSV) SOLENOID VALVE INSPECTION [13B-MSP].)
7	VDI solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].) (See VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) SOLENOID VALVE INSPECTION [13B-MSP].)
8	Check valve (one-way) (See CHECK VALVE (ONE-WAY) INSPECTION [13B-MSP].)
9	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [13B-MSP].)
10	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].) (See THROTTLE BODY INSPECTION [13B-MSP].)
11	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP].) (See AIR CLEANER ELEMENT INSPECTION [13B-MSP].)
12	VFAD actuator (with VFAD) (See VARIABLE FRESH AIR DUCT (VFAD) ACTUATOR INSPECTION [13B-MSP].)
13	Vacuum chamber (See VACUUM CHAMBER INSPECTION [13B-MSP].)
