INTAKE-AIR SYSTEM LOCATION INDEX [L3]

id0113a2801700

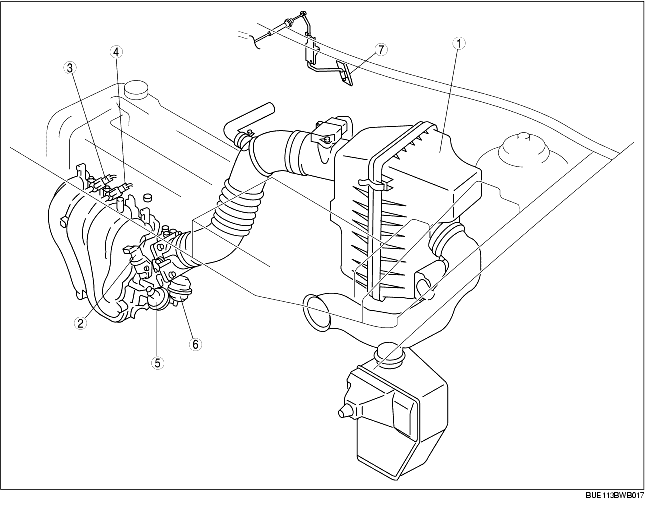

R.H.D. model

1
Intake-air system
2
IAC valve
3
Variable intake air solenoid valve
4
Variable tumble solenoid valve
5
Variable intake air shutter valve actuator
6
Variable tumble shutter valve actuator
7
Accelerator pedal

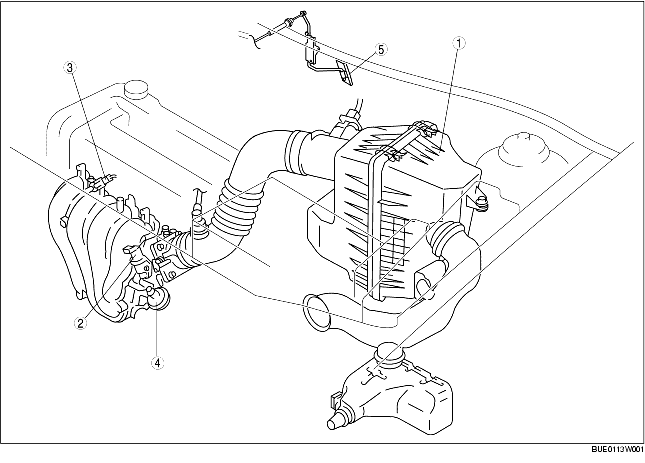

L.H.D. model

1
Intake-air system
2
IAC valve
3
Variable intake air solenoid valve
4
Variable intake air shutter valve actuator
5
Accelerator pedal
