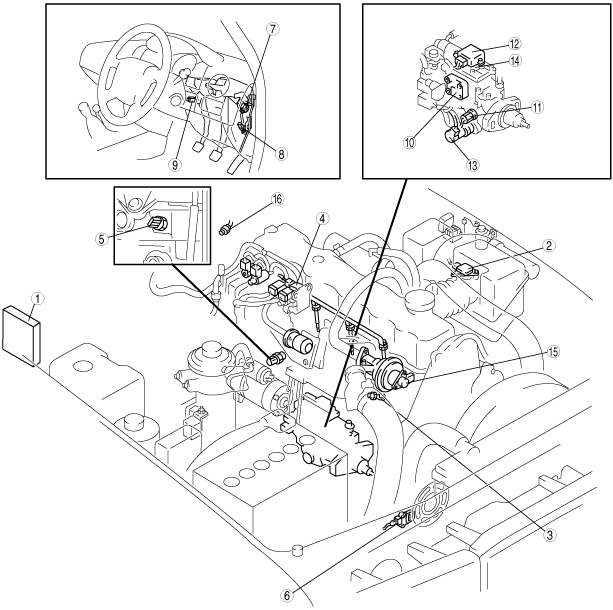

CONTROL SYSTEM LOCATION INDEX [WL-3]

id0140b5804100

absggw00001291

1	PCM (integrated with barometric pressure sensor) (See PCM REMOVAL/INSTALLATION [WL-3].) (See PCM INSPECTION [WL-3].)
2	MAF sensor/IAT sensor No.2 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 INSPECTION [WL-3].)
3	IAT sensor No.1 (See INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 INSPECTION [WL-3].)
4	Boost sensor (See BOOST SENSOR INSPECTION [WL-3].)
5	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [WL-3].)
6	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [WL-3].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [WL-3].)
7	Accelerator pedal position sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [WL-3].)
8	Idle switch (See IDLE SWITCH INSPECTION [WL-3].)
9	CPP switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [WL-3].)
10	Fuel temperature sensor (See FUEL TEMPERATURE SENSOR INSPECTION [WL-3].)
11	Fuel pump speed sensor (See FUEL PUMP SPEED SENSOR INSPECTION [WL-3].)
12	Injection pump EPROM (See INJECTION PUMP EPROM INSPECTION [WL-3].)
13	Timer position sensor (See TIMER POSITION SENSOR INSPECTION [WL-3].)
14	Control sleeve (CS) sensor (See CONTROL SLEEVE (CS) SENSOR INSPECTION [WL-3].)
15	EGR valve position sensor (See EGR VALVE POSITION SENSOR INSPECTION [WL-3].)
16	Neutral switch (See NEUTRAL SWITCH INSPECTION [WL-3].)
