DASHBOARD REMOVAL/INSTALLATION
id091700800300
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Console (See CONSOLE REMOVAL/INSTALLATION.)
-
- (2) Audio unit (with audio unit) (See AUDIO UNIT REMOVAL/INSTALLATION [TYPE B].)
-
- (3) Center panel (with audio unit) (See CENTER PANEL REMOVAL/INSTALLATION.)
-
- (4) Center panel unit (with center panel unit) (See CENTER PANEL UNIT REMOVAL/INSTALLATION [TYPE A].)
-
- (5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (6) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL.) (See CLIMATE CONTROL UNIT INSTALLATION.)
-
- (7) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
-
- (8) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (9) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (10) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)
-
- (11) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
-
- (12) Steering shaft (vehicles without tilt lever) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (13) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
-
- (14) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
-
- (15) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (16) Rear scuff plate (Freestyle cab) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (17) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (18) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (19) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
-
- (20) Fuel-filler lid opener lever (See FUEL-FILLER LID AND OPENER REMOVAL/INSTALLATION.)
-
- (21) (Freestyle cab) (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
-
- (22) Rear seat back (Double cab) (See REAR SEAT REMOVAL/INSTALLATION.)
-
- (23) Rear seat belt upper anchor installation bolt (Double cab) (See SEAT BELT REMOVAL/INSTALLATION.)
-
- (24) C-pillar trim (Double cab) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (25) B-pillar lower trim (Double cab) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (26) Front seat belt upper anchor installation bolt (Double cab, regular cab) (See SEAT BELT REMOVAL/INSTALLATION.)
-
- (27) B-pillar upper trim (Double cab) (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (28) B-pillar trim (Regular cab) (See B-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (29) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (30) Fuse block
-
- (31) Passenger’s-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
-
3. Disconnect the switch connector, cigarette lighter connector, accessory socket connector, and the glove compartment illumination.
4. Disconnect the dashboard harness connectors.

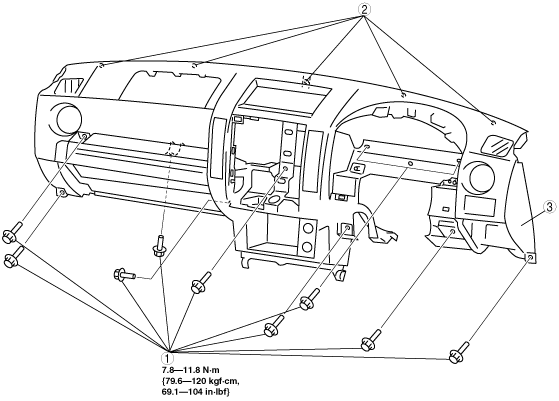

5. Remove in the order indicated in the figure.
6. Install in the reverse order of removal.
