DASHBOARD MEMBER REMOVAL/INSTALLATION
id091700810100
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Console (See CONSOLE REMOVAL/INSTALLATION.)
-
- (2) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
-
- (3) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (4) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL.) (See CLIMATE CONTROL UNIT INSTALLATION.)
-
- (5) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
-
- (6) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (7) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (8) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)
-
- (9) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
-
- (10) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
-
- (11) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
-
- (12) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (13) Rear scuff plate (Freestyle cab) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (14) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (15) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (16) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
-
- (17) Fuel-filler lid opener (See FUEL-FILLER LID AND OPENER REMOVAL/INSTALLATION.)
-
- (18) Roof side trim (Freestyle cab) (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
-
- (19) Rear seat back (Double cab) (See REAR SEAT REMOVAL/INSTALLATION.)
-
- (20) Rear seat belt upper anchor installation bolt (Double cab) (See SEAT BELT REMOVAL/INSTALLATION.)
-
- (21) C-pillar trim (Double cab) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (22) B-pillar lower trim (Double cab) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (23) Front seat belt upper anchor installation bolt (Double cab, regular cab) (See SEAT BELT REMOVAL/INSTALLATION.)
-
- (24) B-pillar upper trim (Double cab) (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (25) B-pillar trim (Regular cab) (See B-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (26) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (27) Fuse block
-
- (28) Passenger’s-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
-
- (29) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)
-

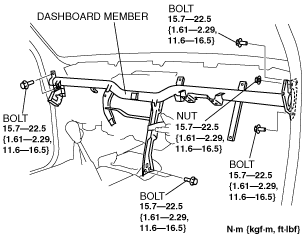

3. Remove the bolts, then remove the dashboard member.
4. Install in the reverse order removal.
