ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

id092000812200

L.H.D. (With Audio System)

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Remove the following parts:

(1) Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION.)

(3) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(7) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(9) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

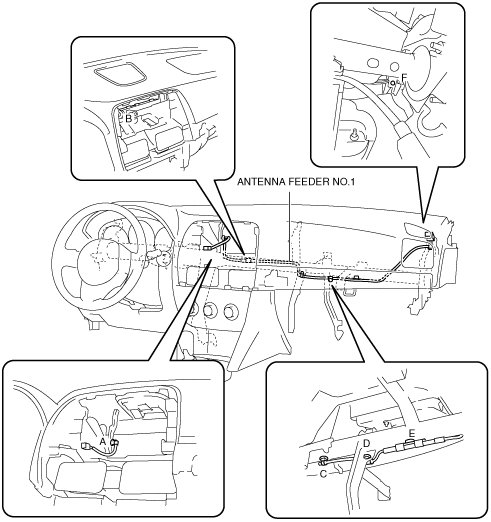

3. Remove clips A, B, C, D, E, and F.

ac5wzw00002793

4. Remove antenna feeder No.1.

5. Install in the reverse order of removal.

L.H.D. (With Car-navigation System)

2. Remove the following parts:

(1) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Front center speaker (with Bose^®)/front center speaker dummy (without Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

(3) GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(4) Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(5) Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION.)

(6) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(7) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(8) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(9) Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(10) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(11) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(13) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(14) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(15) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(16) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(17) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(18) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(19) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(20) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(21) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(22) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(23) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

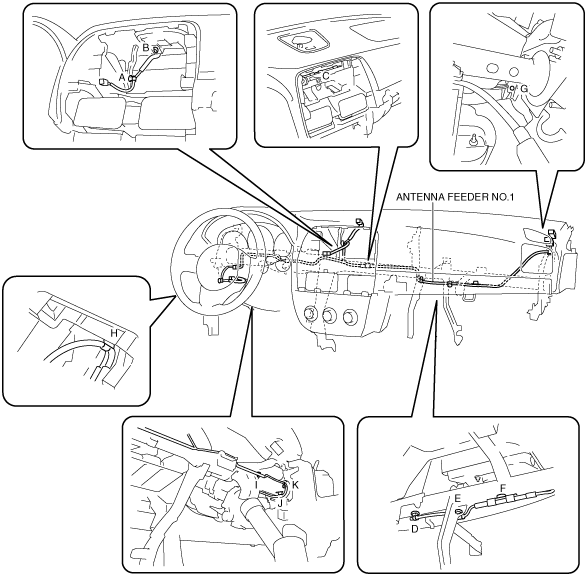

3. Remove clips A, B, C, D, E, F, G, H, I, J and K.

ac5wzw00002794

4. Remove antenna feeder No.1.

5. Install in the reverse order of removal.

R.H.D. (With Audio System)

2. Remove the following parts:

(1) Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION)

(3) A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION)

(4) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(6) Column upper cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(7) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(8) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

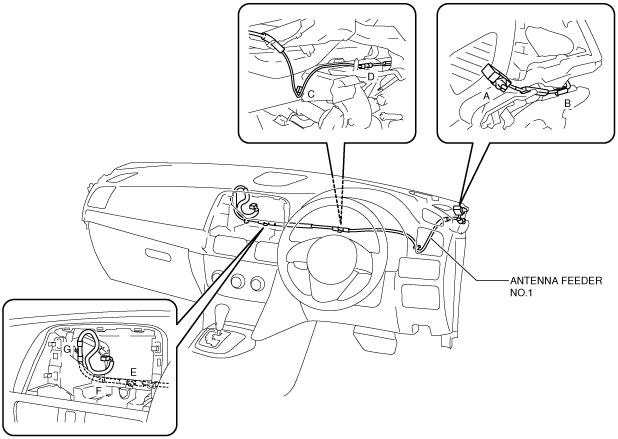

3. Remove clips A, B, C, D, E, F, and G.

ac5wzw00002795

4. Remove antenna feeder No.1.

5. Install in the reverse order of removal.

R.H.D. (With Car-navigation System)

2. Remove the following parts:

(1) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Front center speaker (with Bose^®)/front center speaker dummy (without Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

(3) GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(4) Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(5) Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION)

(6) A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION)

(7) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(9) Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION.)

(10) Column upper cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(11) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(12) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

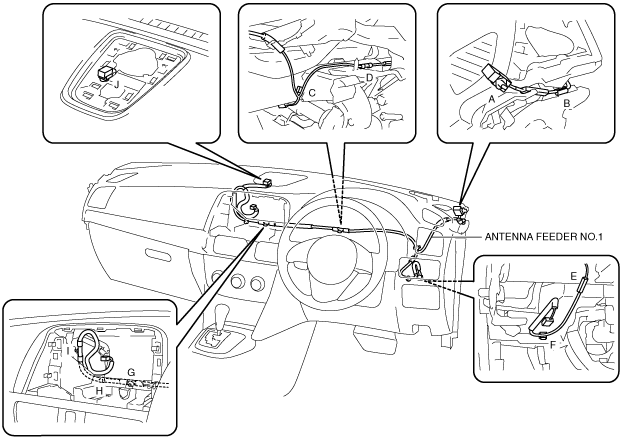

3. Remove clips A, B, C, D, E, F, G, H, I, and J.

ac5wzw00002796

4. Remove antenna feeder No.1.

5. Install in the reverse order of removal.
