INTAKE-AIR SYSTEM [SKYACTIV-D 2.2]

id0113z7003300

Purpose, Outline

• A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.

• With the adoption of the two-stage air charging system, efficient, high air-charging is obtained in all driving ranges. As a result, low emissions, low fuel consumption, high torque, and high response are realized.

Structural View

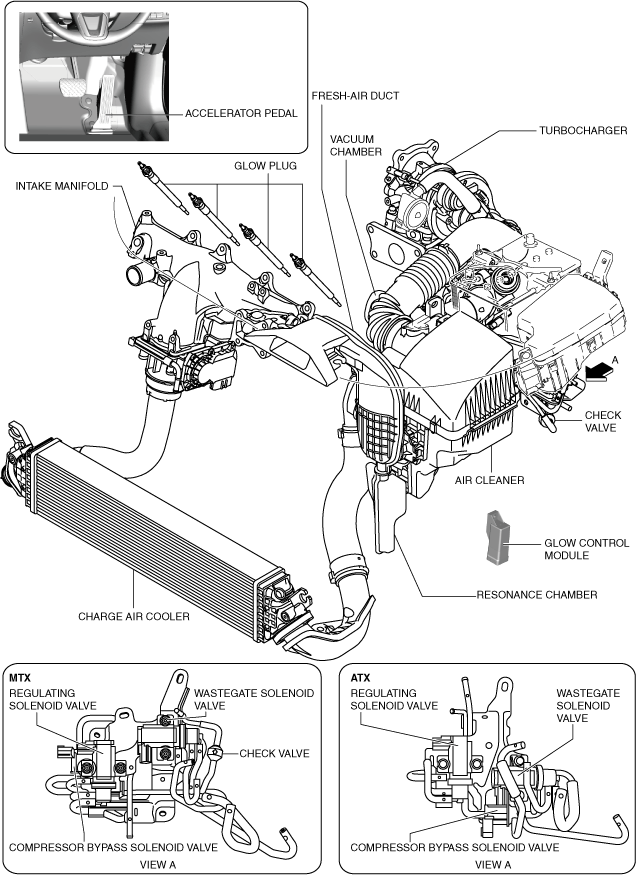

Fuel injector (2pin type)

ac5wzn00004027

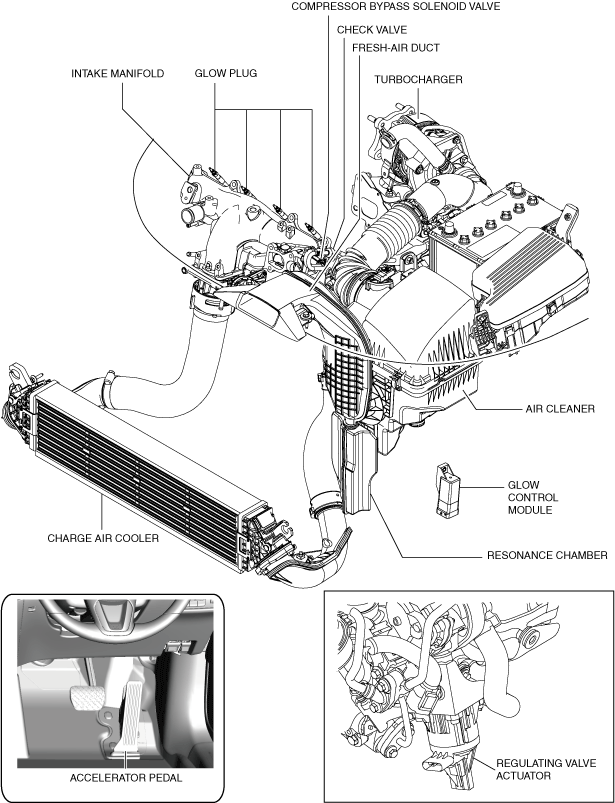

Fuel injector (6pin type)

ac5wzn00005337

System Diagram

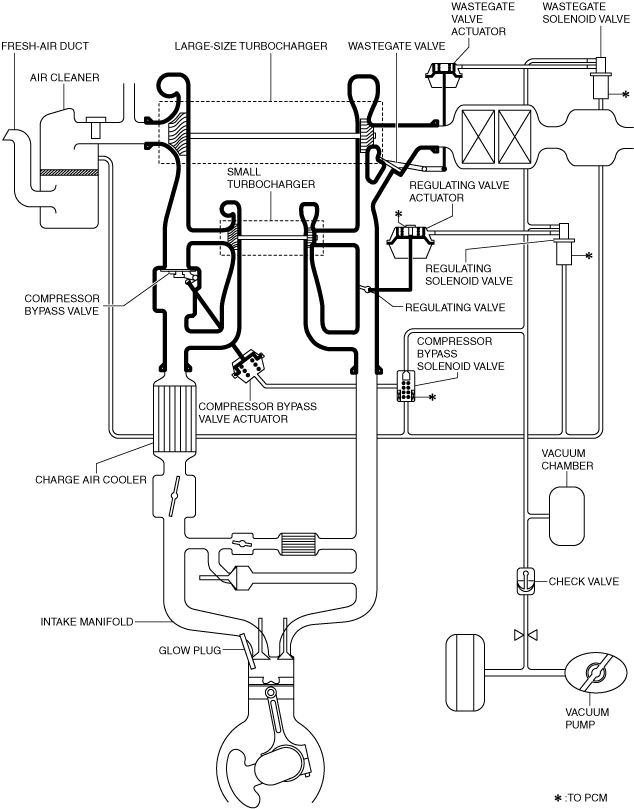

Fuel injector (2pin type)

ac5wzn00002183

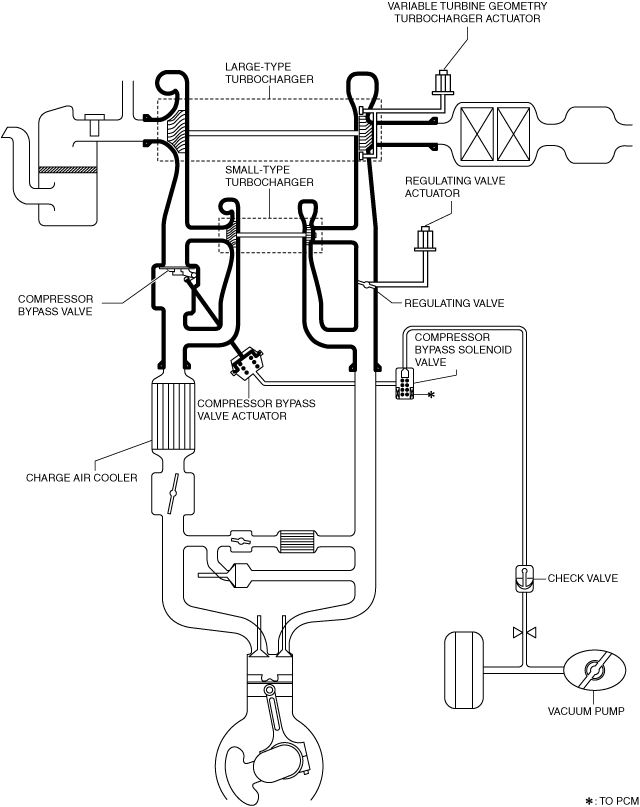

Fuel injector (6pin type)

ac5wzn00005049

Vacuum Hose Routing Diagram

Fuel injector (2pin type)

ac5wzn00002889

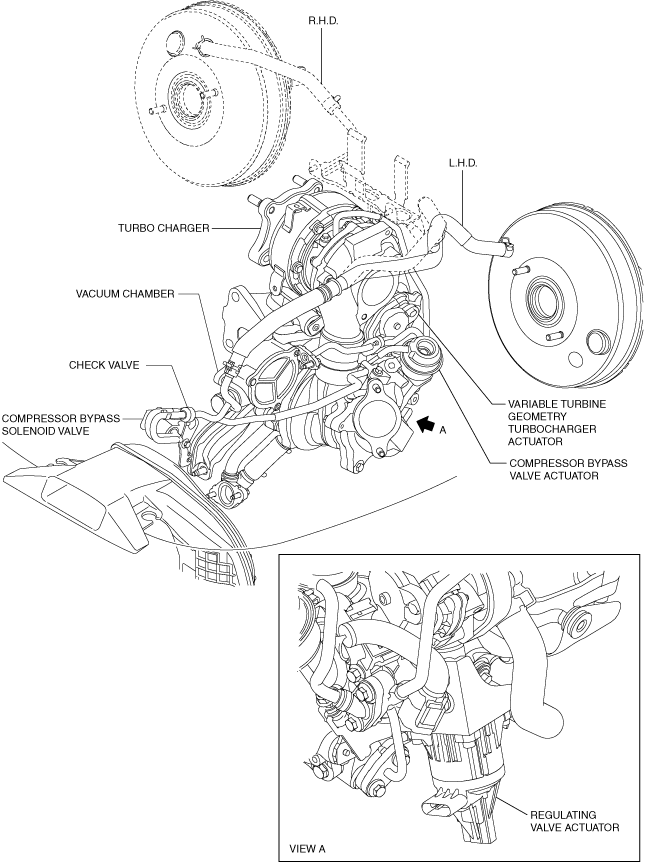

Fuel injector (6pin type)

ac5wzw00012066

Structure

• The intake air system consists of the following parts:

Part/System name

Reference

Fresh-air duct

(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)

Resonance chamber

(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)

Air cleaner

(See AIR CLEANER [SKYACTIV-D 2.2].)

Intake manifold

(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)

Air charging system

(See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)

Turbocharger

Compressor bypass valve actuator

(See TURBOCHARGER [SKYACTIV-D 2.2].)

Compressor bypass valve

Wastegate valve actuator (fuel injector (2pin type))

Wastegate valve (fuel injector (2pin type))

Variable turbine geometry turbocharger actuator (fuel injector (6pin type))

Regulating valve actuator

Regulating valve

Compressor bypass solenoid valve

(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)

Wastegate solenoid valve (fuel injector (2pin type))

(See WASTEGATE SOLENOID VALVE [SKYACTIV-D 2.2].)

Regulating solenoid valve (fuel injector (2pin type))

(See REGULATING SOLENOID VALVE [SKYACTIV-D 2.2].)

Vacuum chamber (fuel injector (2pin type))

(See VACUUM CHAMBER [SKYACTIV-D 2.2].)

Check valve

(See CHECK VALVE [SKYACTIV-D 2.2].)

Charge air cooler

(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)

Glow system

(See GLOW SYSTEM [SKYACTIV-D 2.2].)

Glow plug

(See GLOW PLUG [SKYACTIV-D 2.2].)

Glow control module

(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)

Accelerator pedal

(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)

Part/System name			Reference
Fresh-air duct			(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)
Resonance chamber			(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)
Air cleaner			(See AIR CLEANER [SKYACTIV-D 2.2].)
Intake manifold			(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)
Air charging system (See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)	Turbocharger	Compressor bypass valve actuator	(See TURBOCHARGER [SKYACTIV-D 2.2].)
		Compressor bypass valve
		Wastegate valve actuator (fuel injector (2pin type))
		Wastegate valve (fuel injector (2pin type))
		Variable turbine geometry turbocharger actuator (fuel injector (6pin type))
		Regulating valve actuator
		Regulating valve
	Compressor bypass solenoid valve		(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)
	Wastegate solenoid valve (fuel injector (2pin type))		(See WASTEGATE SOLENOID VALVE [SKYACTIV-D 2.2].)
	Regulating solenoid valve (fuel injector (2pin type))		(See REGULATING SOLENOID VALVE [SKYACTIV-D 2.2].)
	Vacuum chamber (fuel injector (2pin type))		(See VACUUM CHAMBER [SKYACTIV-D 2.2].)
	Check valve		(See CHECK VALVE [SKYACTIV-D 2.2].)
	Charge air cooler		(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)
Glow system (See GLOW SYSTEM [SKYACTIV-D 2.2].)		Glow plug	(See GLOW PLUG [SKYACTIV-D 2.2].)
Glow system (See GLOW SYSTEM [SKYACTIV-D 2.2].)		Glow control module	(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)
Accelerator pedal			(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)
