PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION

id071100002800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(3)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(4)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(5)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(10)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(11)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(12)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(13)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(14)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(15)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(16)  Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Detach the clips.

ac5wzw00008746

4.  Remove the adhesive polyurethane.

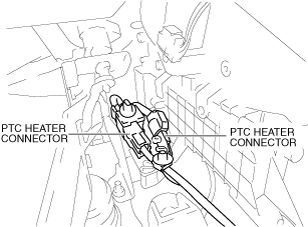

5.  Disconnect the PTC heater connectors.

ac5wzw00008747

6.  Remove the PTC heater wiring harness from the hook.

ac5wzw00008748

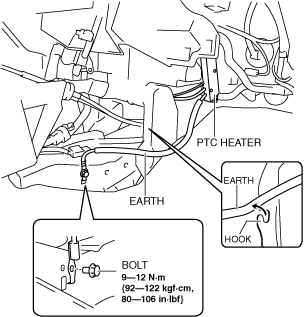

7.  Remove the bolt.

ac5wzw00008749

8.  Disconnect the earth.

9.  Remove the earth from the hook.

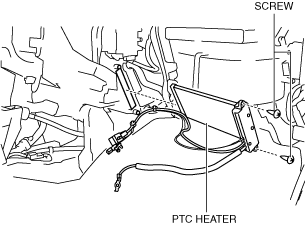

10.  Remove the screws.

ac5wzw00008750

11.  Remove the PTC heater.

12.  Install in the reverse order of the removal.
