REAR WASHER HOSE REMOVAL/INSTALLATION


id091900801600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

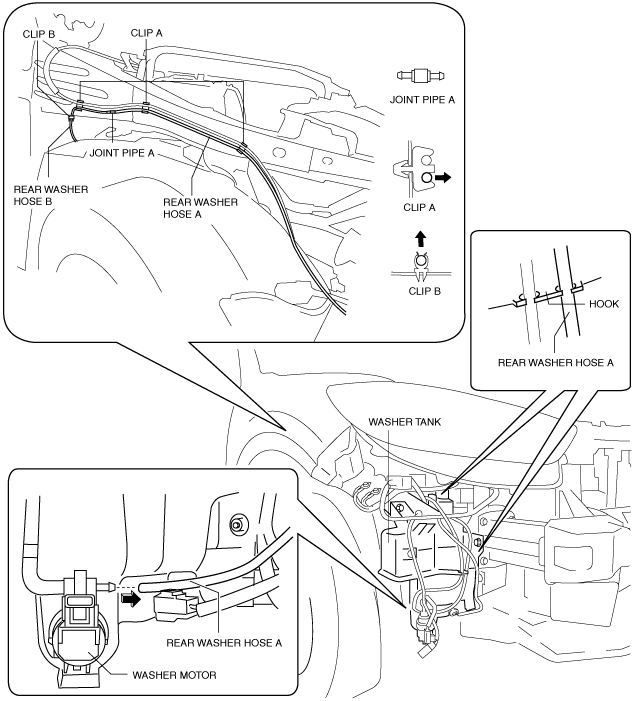

4.  Disconnect the rear washer hose A from the washer motor.

ac5wzw00002977

5.  Remove the rear washer hose A from the washer tank hook.

6.  Remove the rear washer hose A from clips A.

7.  Disconnect the rear washer hose A from the joint pipe A and remove it.

8.  Disconnect the rear washer hose B from the joint pipe A.

9.  Remove the rear washer hose B from clips A and B.

10.  Remove the following parts:

L.H.D.
1.  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
2.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
R.H.D.
1.  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
2.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3.  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
4.  Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

11.  Remove the sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

12.  Remove the A pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

13.  Remove the grommet from the body.

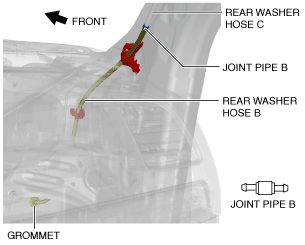

14.  Disconnect the rear washer hose B from the joint pipe B and remove it.

ac5uuw00004203

15.  Disconnect the rear washer hose C from the joint pipe B.

16.  Remove the following parts:

(1)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(3)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(8)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(9)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(10)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(11)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(12)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(13)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(14)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(15)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(16)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

17.  Remove the tape and clips shown in the figure.

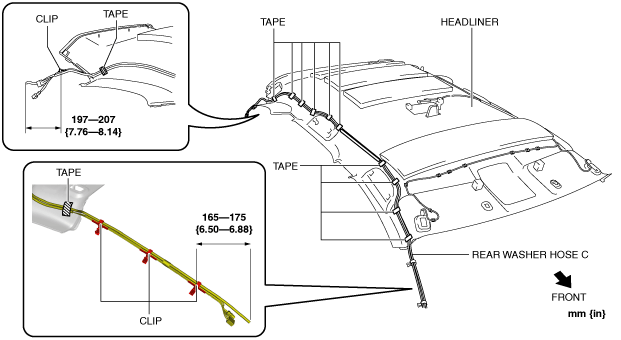

Without sunroof

ac5uuw00004204

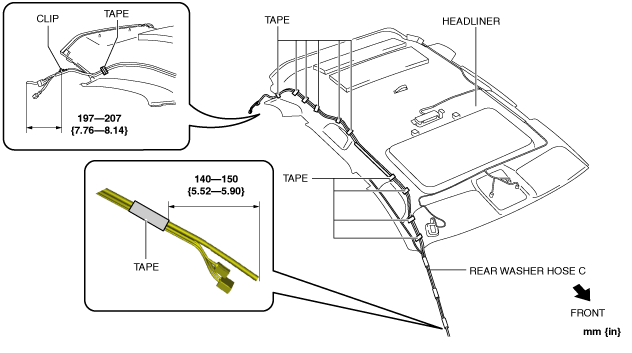

With sunroof

ac5uuw00004205

18.  Remove the rear washer hose C.

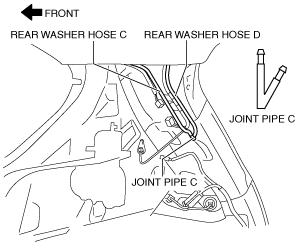

19.  Disconnect the rear washer hose D from the joint pipe C.

ac5wzw00001628

20.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

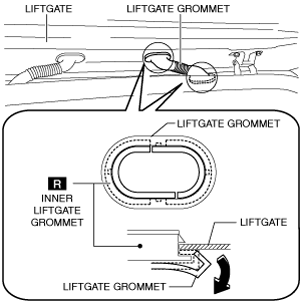

21.  Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

ac5uuw00004206

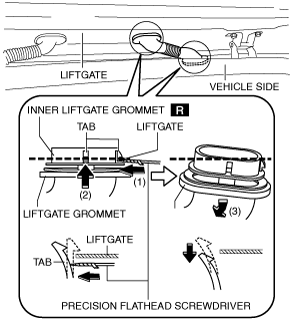

22.  Using a tape-wrapped precision flathead screwdriver, press the inner liftgate grommet tabs in the directions of arrows (1) and (2) shown in the figure and remove each inner liftgate grommet from the liftgate and vehicle side in the direction of arrow (3).

ac5uuw00004207

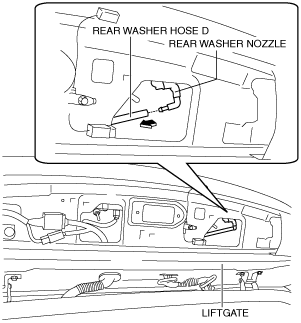

23.  Disconnect the rear washer hose D from the rear washer nozzle and remove it.

ac5wzw00001630

24.  Install in the reverse order of removal.
