REAR SUSPENSION LOCATION INDEX

id021400800400

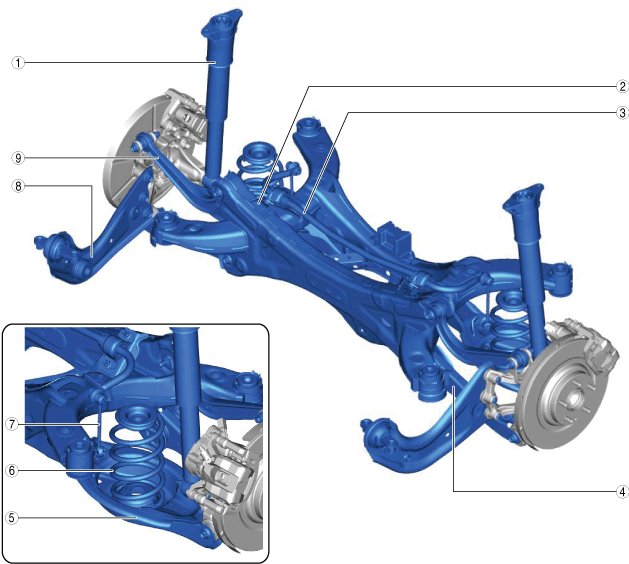

2WD

ac8jjw00001251

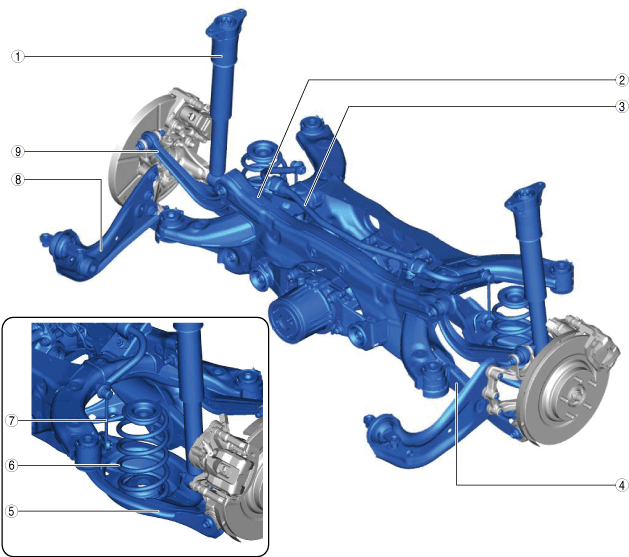

4WD

ac8jjw00001252

1	Rear shock absorber (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.) (See REAR SHOCK ABSORBER INSPECTION.) (See REAR SHOCK ABSORBER DISPOSAL.)
2	Rear crossmember (See REAR CROSSMEMBER REMOVAL/INSTALLATION [2WD].) (See REAR CROSSMEMBER REMOVAL/INSTALLATION [4WD].)
3	Rear stabilizer (See REAR STABILIZER REMOVAL [2WD].) (See REAR STABILIZER REMOVAL [4WD].) (See REAR STABILIZER INSTALLATION [2WD].) (See REAR STABILIZER INSTALLATION [4WD].)
4	Rear lateral link (See REAR LATERAL LINK REMOVAL/INSTALLATION.)
5	Rear lower arm (See REAR LOWER ARM REMOVAL/INSTALLATION.)
6	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
7	Remove the rear stabilizer control link (See REAR STABILIZER CONTROL LINK INSPECTION.)
8	Rear trailing link (See REAR TRAILING LINK REMOVAL/INSTALLATION.)
9	Rear upper arm (See REAR UPPER ARM REMOVAL/INSTALLATION [2WD].) (See REAR UPPER ARM REMOVAL/INSTALLATION [4WD].)
