SELECTOR CABLE REMOVAL/INSTALLATION
id051800297700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Perform the following procedure to remove the selector cable (transaxle side).
- (1) Remove the plug hole plate. (FW6A-EL, FW6AX-EL) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
-
- (2) Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
-
-
• Air cleaner cover
-
• Air cleaner element
-
• Fresh-air duct
-
• Air cleaner case
-
• Air hose
-
• Resonance chamber
- (3) Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
-
- (4) Remove the PCM component. (FW6A-EL, FW6AX-EL) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
-
- (5) Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
-

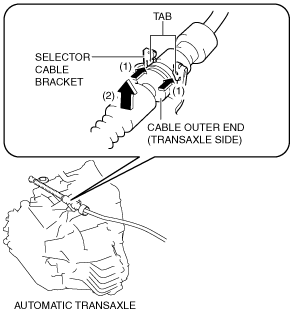

- (6) While pressing the selector cable bracket tabs in the direction of arrows (1) shown in the figure, lift up the cable outer end (transaxle side) in the direction of arrow (2) and detach the selector cable bracket tabs from the cable outer end (transaxle side).
-
- (7) Disconnect the cable outer end (transaxle side) from the selector cable bracket. (See Cable Outer End (Transaxle Side) Installation Note.)
-

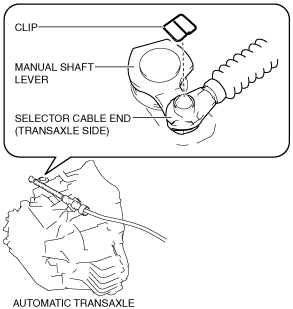

- (8) Remove the clip from the selector cable end (transaxle side). (See Selector Cable End (Transaxle Side) Installation Note.)
-
-
Caution
-
• Pull the clip within the range shown in the figure. If the clip is pulled excessively, it could deform and no longer function.
3. Remove the nut and disconnect the clip.
4. Perform the following procedure to remove the selector cable (selector lever side).
- (1) Remove the console side panel (rear console). (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (3) Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (4) Remove the front console box. (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (5) Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (6) Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (7) While pressing the cable outer end (selector lever side) tab in the direction of arrow (1) shown in the figure, lift up the cable outer end (selector lever side) in the direction of arrow (2) and detach the cable outer end (selector lever side) tab from the selector lever component.
-
- (8) Disconnect the cable outer end (selector lever side) from the selector lever component.
-
- (9) Disconnect the selector cable end (selector lever side) from the selector lever. (See Selector Cable (Selector Lever Side) Installation Note.)
-

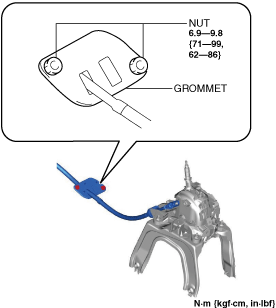

5. Remove the nuts and disconnect the grommet.
6. Pull out the shift cable from inside the cabin and remove it.
7. Install in the reverse order of removal.
Selector Cable (Selector Lever Side) Installation Note
Verify that the selector lever is in the P position.

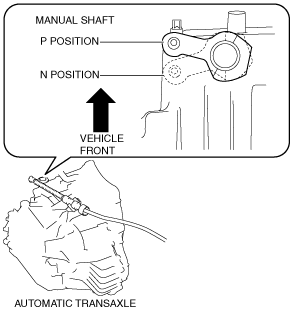

1. Verify that the manual shaft is in the P position.
Selector Cable End (Transaxle Side) Installation Note
-
Caution
-
• Pull the clip within the range shown in the figure. If the clip is pulled excessively, it could deform and no longer function.
1. Install a clip to the groove of the selector cable end (transaxle side).
Cable Outer End (Transaxle Side) Installation Note

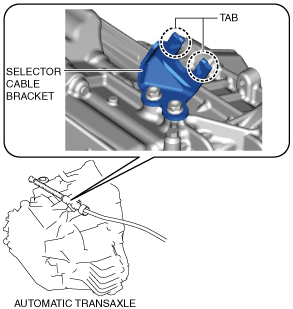

1. Verify that the selector cable bracket tabs are not deformed.
-

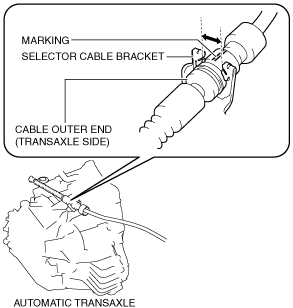

2. Insert the cable outer end (transaxle side) so that the marking is in the area of the arrows shown in the figure and assemble the cable outer end (transaxle side) to the selector cable bracket.
