REAR A/C UNIT REMOVAL/INSTALLATION

id071100802000

Replacement Part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].)

4.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(7)  Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)

(8)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(9)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(10)  Selector lever bracket (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(11)  Keyless antenna (center) (See KEYLESS ANTENNA REMOVAL/INSTALLATION.)

(12)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(13)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

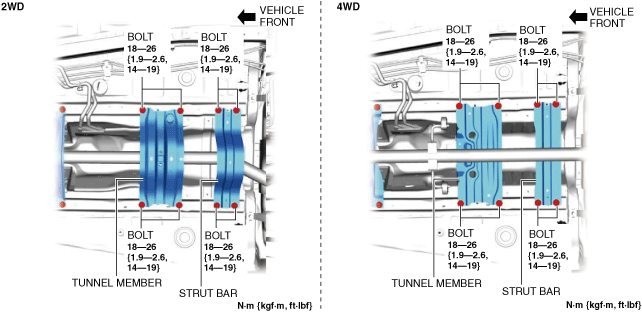

(14)  Tunnel member

SKYACTIV-D 2.2

ac8wzw00000147

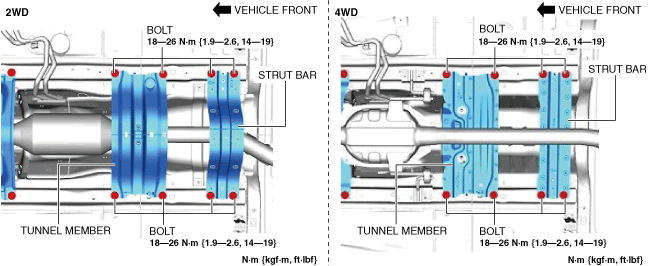

SKYACTIV-G 2.5

ac8wzw00003366

(15)  Strut bar

(16)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

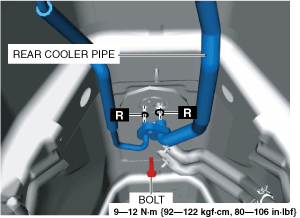

5.  Remove the bolt.

ac9uuw00007537

6.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunctions could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

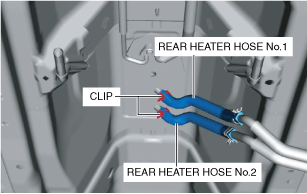

7.  Disconnect the rear heater hose No.1.

ac9uuw00007538

8.  Disconnect the rear heater hose No.2.

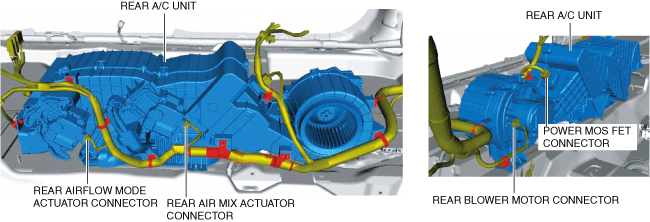

9.  Disconnect the rear blower motor connector.

ac9uuw00007539

10.  Disconnect the power MOS FET connector.

11.  Disconnect the rear airflow mode actuator connector.

12.  Disconnect the rear air mix actuator connector.

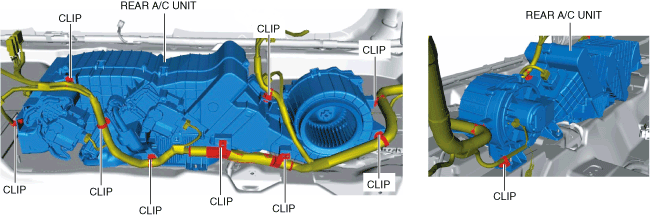

13.  Detach the clips.

ac9uuw00007540

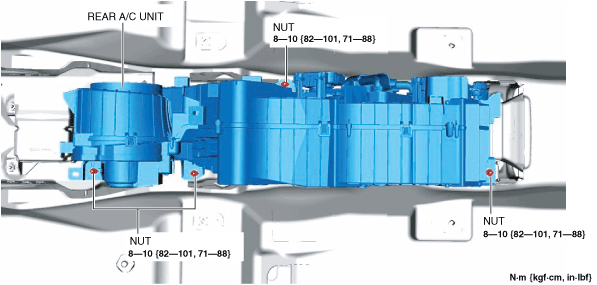

14.  Remove the nuts.

ac9uuw00007541

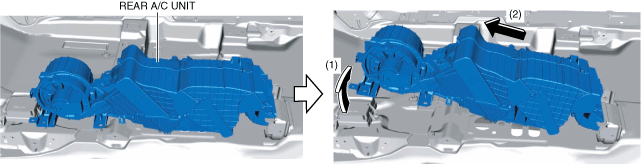

15.  Move the rear A/C unit in the order of arrows (1) and (2) shown in the figure, and remove the rear A/C unit. Do not allow compressor oil to spill.

ac9uuw00007542

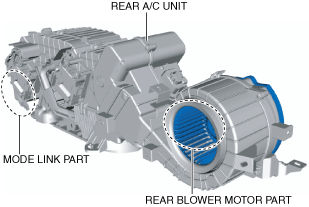

Caution

•  Do not hold the rear blower motor part and mode link part as shown in the figure when removing/installing the rear A/C unit. Otherwise, the rear blower motor and mode link could be damaged.

ac9uuw00007543

16.  Install in the reverse order of removal. (See Rear A/C Unit Installation Note (1).)(See Rear A/C Unit Installation Note (2).)

17.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].)

18.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Rear A/C Unit Installation Note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

Rear A/C Unit Installation Note (2)

1.  When replacing the rear A/C unit or rear evaporator, add compressor oil to the refrigerant cycle.
