DTC U3003:16/U3003:17 [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)]

id0802g7823200

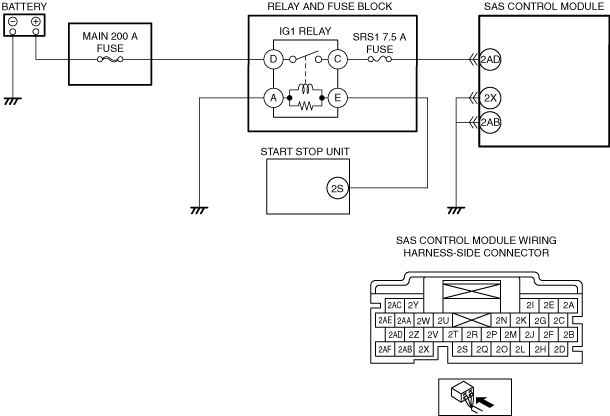

System malfunction location	•  U3003:16: SAS control module power supply voltage decreases (8 V or less) •  U3003:17: SAS control module power supply voltage increases (16 V or more)
Detection condition	Warning •  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. •  SAS control module power supply voltage is other than 8.1—15.9 V
Fail-safe function	Not applicable
Possible cause	•  DTCs are stored in the PCM. •  Battery malfunction •  Generator system malfunction •  SAS control module connector malfunction •  SAS control module power supply circuit malfunction ―  Short to ground in the wiring harness between MAIN 200 A fuse and SAS control module terminal 2AD ―  SRS1 7.5 A fuse malfunction ―  MAIN 200 A fuse malfunction ―  IG1 relay malfunction ―  Open circuit in the wiring harness between battery positive terminal and SAS control module terminal 2AD •  SAS control module body ground circuit malfunction ―  Open circuit in wiring harness between SAS control module terminal 2X and body ground ―  Open circuit in wiring harness between SAS control module terminal 2AB and body ground •  SAS control module malfunction

Diagnostic procedure

Warning

•  Handling the component parts improperly can accidentally operate (deploy) the air bag modules, pre-tensioner seat belts and active bonnet actuators which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See ACTIVE BONNET SERVICE WARNINGS.) (See ACTIVE BONNET SERVICE CAUTIONS.)

Step	Inspection		Action
1	INSPECT IG1 RELAY •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the IG1 relay. (See RELAY LOCATION.) •  Inspect the IG1 relay. (See RELAY INSPECTION.) •  Is the IG1 relay normal?	Yes	Go to the next step.
		No	Replace the IG1relay, then go to Step 8.
2	INSPECT PCM DTC •  Perform the PCM DTC inspection using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5)].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-G 2.5)].) (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
		No	Go to the next step.
3	INSPECT BATTERY •  Inspect the battery. (See BATTERY INSPECTION.) •  Is the battery normal?	Yes	Go to the next step.
		No	Replace or charge the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY RECHARGING.) Then go to Step 8.
4	INSPECT GENERATOR •  Inspect the generator. (See GENERATOR INSPECTION [SKYACTIV-G 2.5].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2].) •  Is the generator normal?	Yes	Go to the next step.
		No	Replace the generator, then go to Step 8. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	VERIFY SAS CONTROL MODULE CONNECTOR CONDITION •  Switch the ignition off. •  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) •  Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.) •  Disconnect the passenger-side air bag module connectors. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Disconnect the driver and passenger-side front seat connectors. (See FRONT SEAT REMOVAL/INSTALLATION.) •  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side front pre-tensioner seat belt connectors. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) •  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.) •  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) •  Disconnect the driver and passenger-side curtain air bag module connectors. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Disconnect the active bonnet actuator connectors. (See ACTIVE BONNET ACTUATOR REMOVAL/INSTALLATION.) •  Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Replace the air bag harness. After repair procedure, go to Step 8.
6	INSPECT SAS CONTROL MODULE POWER SUPPLY VOLTAGE •  SAS control module connectors are disconnected. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition on (engine off or on). •  Measure the voltage at the following terminal (wiring harness-side): ―  SAS control module terminal 2AD •  Is the voltage 8.1—15.9?	Yes	Go to the next step.
		No	Inspect the SRS1 7.5 A fuse and MAIN 200 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between MAIN 200 A fuse and SAS control module terminal 2AD. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between battery positive terminal and SAS control module terminal 2AD. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Go to Step 8.
7	INSPECT SAS CONTROL MODULE BODY GROUND CIRCUIT FOR OPEN CIRCUIT •  SAS control module connectors are disconnected. •  Switch the ignition off. •  Disconnect the negative battery terminal and wait 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  SAS control module terminal 2X ―  SAS control module terminal 2AB Note •  Inspect for continuity while shaking the wiring harness between the SAS control module and body ground. •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and body ground. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Replace the malfunctioning part. If there is no common connector: •  Replace the wiring harness which has an open circuit. Go to the next step.
8	PERFORM SAS CONTROL MODULE DTC INSPECTION •  Connect the SAS control module connectors. •  Reconnect all disconnected connectors. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].) •  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].) •  Are the same DTCs present?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
		No	DTC troubleshooting completed.
