EXTRACTOR CHAMBER REMOVAL/INSTALLATION

id091600801500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(6)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(7)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(8)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(9)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(10)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(11)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

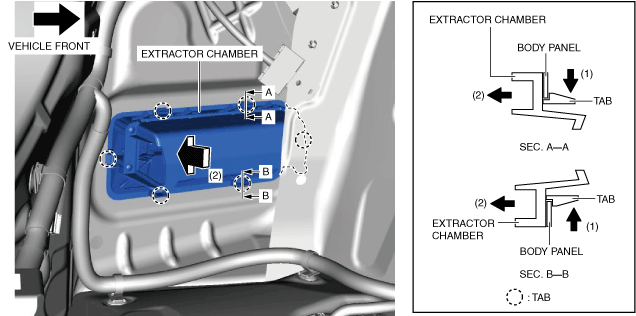

3.  While pressing the tabs in the directions of arrows (1) shown in the figure, move the extractor chamber in the direction of arrow (2), and remove it.

ac8wzw00002166

4.  Install in the reverse order of removal.
