C-PILLAR TRIM REMOVAL/INSTALLATION

id091700802200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(7)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(8)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

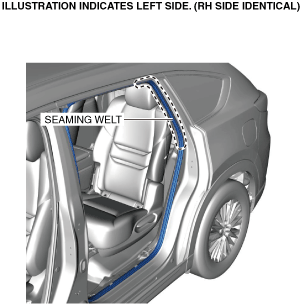

3.  Partially peel back the seaming welt.

ac8wzw00001706

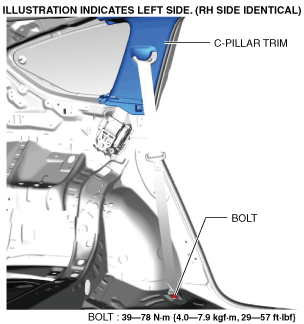

4.  Remove the second-row seat belt installation bolt.

ac8wzw00001707

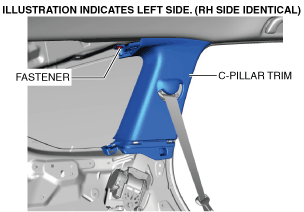

5.  Remove the fastener.

ac8wzw00001708

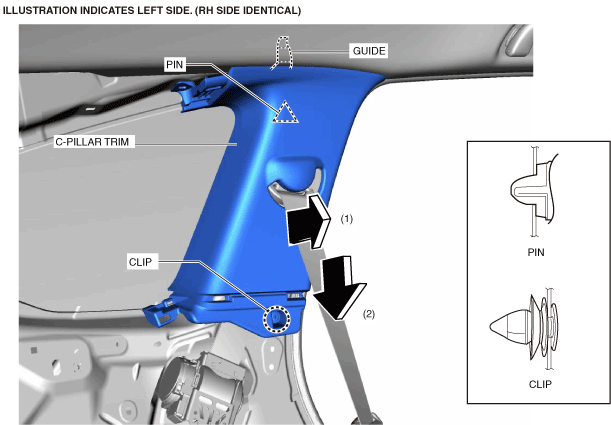

6.  Move the C-pillar trim in the direction of arrow (1) shown in the figure and detach the clip and pin from the body panel.

ac8wzw00001709

7.  Move the C-pillar trim in the direction of arrow (2) shown in the figure and pull the guide out of the body panel.

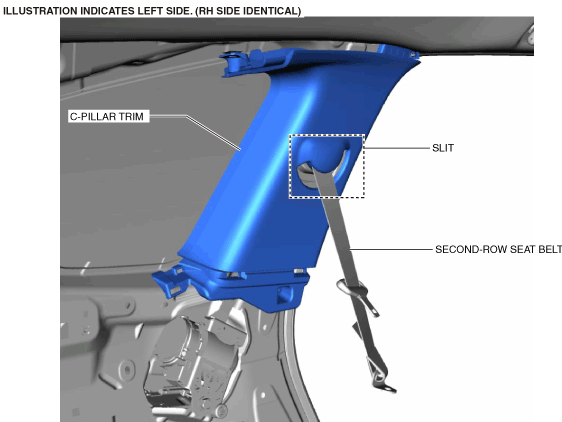

8.  Pull the second-row seat belt out of the slit and remove the C-pillar trim.

ac8wzw00001710

9.  Install in the reverse order of removal.
