HVAC BASIC SYSTEM LOCATION INDEX

id071100701800

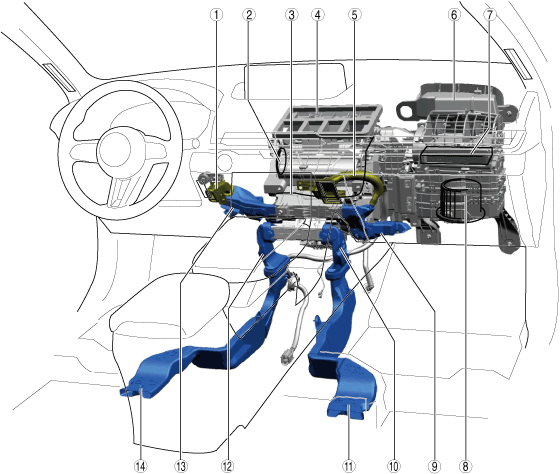

Structural View (Inside Cabin)

L.H.D.

a30zzw00002297

1	Driver-side front heat duct No.2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
2	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
3	A/C unit short-cord (See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION.)
4	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.)
5	Passenger-side front heat duct No.2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
6	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)
7	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
8	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION.) (See BLOWER MOTOR INSPECTION.)
9	Passenger-side front heat duct No.1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
10	Passenger-side rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
11	Passenger-side rear heat duct No.2 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
12	Driver-side rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
13	Driver-side front heat duct No.1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
14	Driver-side rear heat duct No.2 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

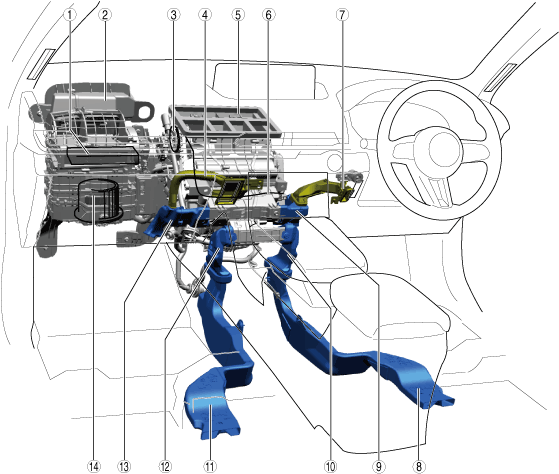

R.H.D.

a30jjw00004962

1	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
2	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)
3	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
4	Passenger-side front heat duct No.2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
5	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.)
6	A/C unit short-cord (See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION.)
7	Driver-side front heat duct No.2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
8	Driver-side rear heat duct No.2 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
9	Driver-side front heat duct No.1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
10	Driver-side rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
11	Passenger-side rear heat duct No.2 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
12	Passenger-side rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
13	Passenger-side front heat duct No.1 (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
14	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION.) (See BLOWER MOTOR INSPECTION.)

Structural View (Exterior)

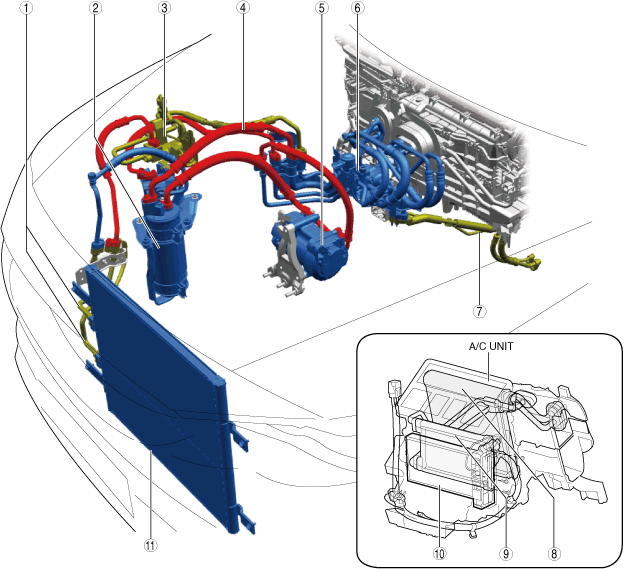

L.H.D.

a30zzw00002298

1	Front cooler pipe (See FRONT COOLER PIPE REMOVAL/INSTALLATION.)
2	Accumulator (See ACCUMULATOR REMOVAL/INSTALLATION.)
3	Heat pump valve component No.2 (See HEAT PUMP VALVE COMPONENT No.2 REMOVAL/INSTALLATION.)
4	Flexible hose (See FLEXIBLE HOSE REMOVAL/INSTALLATION.)
5	Electronic compressor (See ELECTRIC COMPRESSOR REMOVAL/INSTALLATION.) (See ELECTRIC COMPRESSOR INSPECTION.)
6	Heat pump valve component No.1 (See HEAT PUMP VALVE COMPONENT No.1 REMOVAL/INSTALLATION.) (See ELECTRIC EXPANSION VALVE INSPECTION.)
7	Rear cooler pipe (See REAR COOLER PIPE REMOVAL/INSTALLATION.)
8	Evaporator (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EVAPORATOR INSPECTION.)
9	Cabin condenser (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See CABIN CONDENSER INSPECTION.)
10	Positive temperature coefficient (PTC) heater (See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER REMOVAL/INSTALLATION.) (See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER INSPECTION.)
11	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)

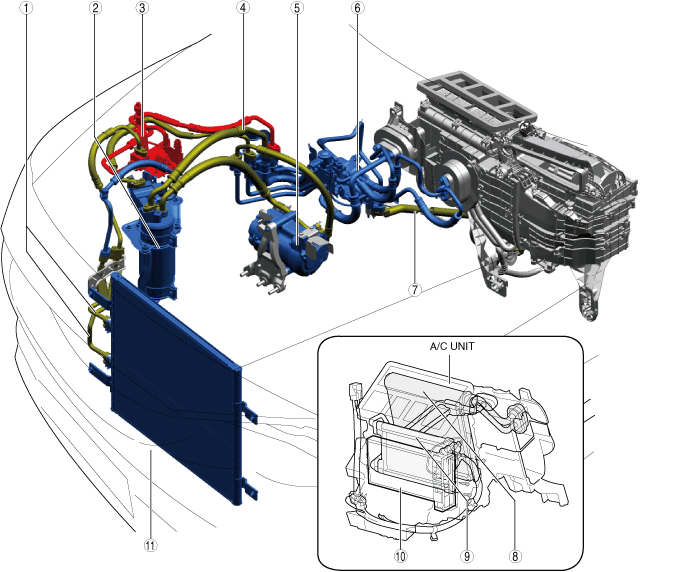

R.H.D.

a30zzw00006819

1	Front cooler pipe (See FRONT COOLER PIPE REMOVAL/INSTALLATION.)
2	Accumulator (See ACCUMULATOR REMOVAL/INSTALLATION.)
3	Heat pump valve component No.2 (See HEAT PUMP VALVE COMPONENT No.2 REMOVAL/INSTALLATION.)
4	Flexible hose (See FLEXIBLE HOSE REMOVAL/INSTALLATION.)
5	Electronic compressor (See ELECTRIC COMPRESSOR REMOVAL/INSTALLATION.) (See ELECTRIC COMPRESSOR INSPECTION.)
6	Heat pump valve component No.1 (See HEAT PUMP VALVE COMPONENT No.1 REMOVAL/INSTALLATION.) (See ELECTRIC EXPANSION VALVE INSPECTION.)
7	Rear cooler pipe (See REAR COOLER PIPE REMOVAL/INSTALLATION.)
8	Evaporator (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EVAPORATOR INSPECTION.)
9	Cabin condenser (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See CABIN CONDENSER INSPECTION.)
10	Positive temperature coefficient (PTC) heater (See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER REMOVAL/INSTALLATION.) (See POSITIVE TEMPERATURE COEFFICIENT (PTC) HEATER INSPECTION.)
11	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
