REAR HEAT DUCT REMOVAL/INSTALLATION

id071100702900

Rear heat duct No.1

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(5)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

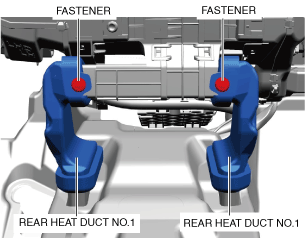

4.  Remove the fasteners.

a30zzw00002783

5.  Remove the rear heat duct No.1.

6.  Install in the reverse order of removal.

Rear heat duct No.2

Warning

•  Handling the SAS control module improperly may cause the air bag or pre-tensioner seat belt to activate (deploy) unexpectedly, which may cause an injury. Read the SRS air bag system service warnings and cautions before handling the SAS control module.(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(2)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION.)

(3)  Front seat(See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

(4)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(9)  Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)

(10)  Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)

(11)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(12)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(13)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(14)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(15)  SAS control module(See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

(16)  Parking assist unit (optical) (With parking assist system)(See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(E)].)

(17)  360° view monitor control module (With 360° view monitor system) (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.)

(18)  Audio amplifier(See AUDIO AMPLIFIER REMOVAL/INSTALLATION [(E)].)

(19)  Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

(20)  Dashboard bracket(See DASHBOARD REMOVAL [(E)].)(See DASHBOARD INSTALLATION [(E)].)

(21)  Front floor covering(See FLOOR COVERING REMOVAL/INSTALLATION [(E)].)

4.  Remove the fasteners.

a30zzw00002784

5.  Remove the rear heat duct No.2.

6.  Install in the reverse order of removal.
