BLOWER MOTOR REMOVAL/INSTALLATION

id071100702000

L.H.D.

1.  Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Glove compartment(See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)

(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(8)  Passenger-side lower panel(See PASSENGER-SIDE LOWER PANEL REMOVAL [(E)].)(See PASSENGER-SIDE LOWER PANEL INSTALLATION [(E)].)

4.  Remove the screws.

a30zzw00002764

5.  Remove the brackets.

6.  Detach the clip.

7.  Disconnect the connectors.

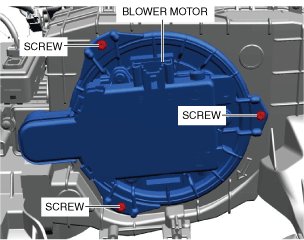

8.  Remove the screws.

a30zzw00002765

9.  Remove the blower motor.

10.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the screws.

a30zzw00006817

4.  Remove the brackets.

5.  Detach the clip.

6.  Disconnect the connectors.

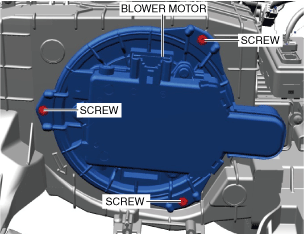

7.  Remove the screws.

a30zzw00006818

8.  Remove the blower motor.

9.  Install in the reverse order of removal.
